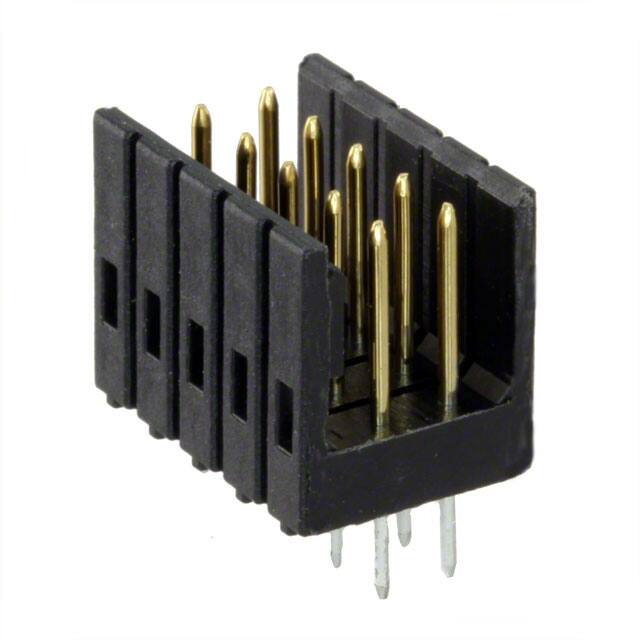

The TE Connectivity 826469-5 is a PCB mount header from the AMPMODU series. It is a 10-position, 2-row connector with a 2.54mm pitch and row spacing. The connector is partially shrouded and features a vertical orientation for through-hole soldering. Contacts are made of phosphor bronze with gold plating on the mating area and tin on the termination area. The contact current rating is 5 A maximum, with an insulation resistance of 5000 MΩ and a dielectric withstanding voltage of 750 Vrms. The operating temperature range is -65 to 105°C. The housing is black glass-filled PCT with a UL94 V-0 flammability rating. The part includes a board standoff feature for solder processing and uses detent latching for secure mating. Designed for board-to-board parallel configurations and cable connections, this header is suitable for signal circuit applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.34 | $3.34 |
| 10+ | $2.84 | $2.84 |
| 100+ | $2.32 | $2.32 |
| 175+ | $2.31 | $2.31 |
| 525+ | $2.14 | $2.14 |
| 1,050+ | $2.04 | $2.04 |
| 2,625+ | $1.98 | $1.98 |
| 5,075+ | $1.91 | $1.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 10 positions arranged in 2 rows.
The pitch is 2.54 mm (0.1 in).
The contact current rating is 5 A maximum.
The dielectric withstanding voltage is 750 Vrms maximum.
It uses through-hole mounting with solder termination.
The operating temperature range is -65 to 105 °C.
Contacts are phosphor bronze with gold plating on the mating area and tin on the termination area. Nickel underplating is used.
