826469-4

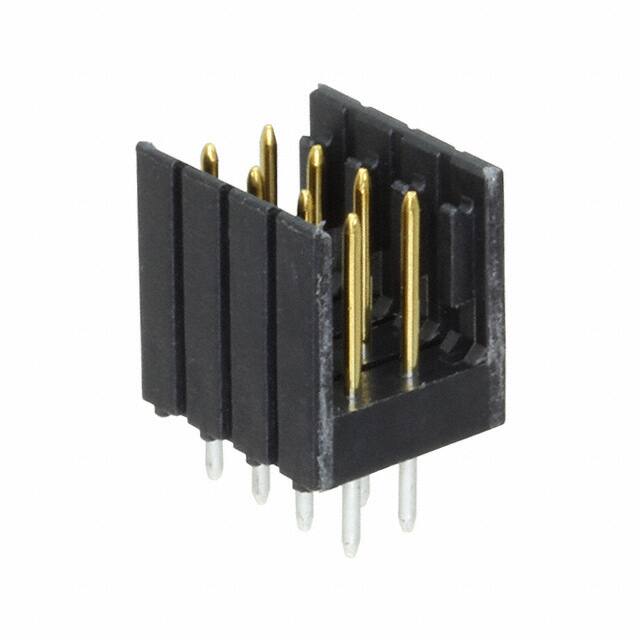

TE Connectivity 826469-4 is an 8-position, 2-row, 2.54mm pitch vertical PCB mount header with gold-plated contacts and a partially shrouded design.

✓ Total Stock: 10,228 pcs

$ Price Range: $1.61 - $2.86

826469-4 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
AA2DE ✓ Non-Authorised Inventory information	10,228 pcs On Request	10228 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

826469-4 Description

Short technical summary and product information.

The TE Connectivity 826469-4 is a PCB mount header from the AMPMODU Headers family. It features 8 positions arranged in 2 rows with a 2.54mm pitch and row spacing. This vertical, through-hole header is partially shrouded with a latch holder for secure mating. The contacts are made of phosphor bronze with gold plating on the mating area (0.8µm) and tin on the termination area, rated for 5A current. The insulation is black PCT glass-filled material rated UL94 V-0, and the operating temperature range is -55°C to 105°C. It is designed for board-to-board or cable connections with a 0.63mm mating pin diameter and includes polarization for mating alignment. The header is not sealable and has no PCB mount retention feature.

826469-4 Quick Information

Product Type: Header, Male Pins

Series: AMPMODU

Canonical Name: TE Connectivity AMPMODU Headers 826469-4, PCB Mount Header, Vertical, Board-to-Board, 8 Position, 2.54mm, Partially Shrouded, Gold

Subcategory: Headers, Male Pins

826469-4 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

826469-4 Estimated Pricing

Qty	Low	High
1+	$2.86	$2.86
10+	$2.60	$2.60
250+	$2.06	$2.06
500+	$1.96	$1.96
1,000+	$1.75	$1.75
2,500+	$1.67	$1.67
5,000+	$1.61	$1.61

Estimated market price range - modelled values for guidance only, not live distributor offers.

826469-4 Features

8 positions in 2 rows with 2.54mm pitch.
Vertical through-hole mounting with solder termination.
Gold-plated mating area for reliable connections.
Rated for 5A current and 750Vrms dielectric.
Partially shrouded with latch holder for secure mating.

826469-4 Applications

Board-to-board interconnections in electronic assemblies.
Cable-to-board connections requiring secure latching.
Signal routing in industrial control systems.

826469-4 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the 826469-4 header have?

8 positions.

What is the pitch of this header?

2.54mm (0.100 inches).

What is the current rating?

5A.

What is the voltage rating?

750Vrms dielectric withstanding voltage.

What is the mounting type?

Through Hole with Solder termination.

What is the operating temperature range?

-55°C to 105°C.

What contact material is used?

Phosphor bronze with gold plating on the mating area.

Category	Headers, Male Pins
Manufacturer Name	TE Connectivity
Connector System	Board-to-Board
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	3.90µin (0.099µm)
Contact Length	3.20mm (0.126")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Holder
Housing Material	PCT
Insulation Color	Black
Insulation Height	10.00mm (0.394")
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Insulation Resistance	5000 MΩ
Lead Spacing	2.54 mm
Material Flammability Rating	UL94 V-0
Mating Alignment Type	Polarization
Mating Retention Type	Detent Latching
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 105°C
PCB Mount Retention	Without
Pitch	2.54mm (0.100")
Row Spacing	0.100" (2.54mm)
Shrouding	Shrouded - 2 Wall
Style	Board to Board or Cable
Termination	Solder
Termination Method	Solder
