| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
28,413 pcs
|
28413 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish - Mating | |
| Contact Finish - Post | |
| Contact Finish Thickness | |
| Contact Finish Thickness - Mating | |
| Contact Finish Thickness - Post | |
| Contact Length | |
| Contact Length - Post | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

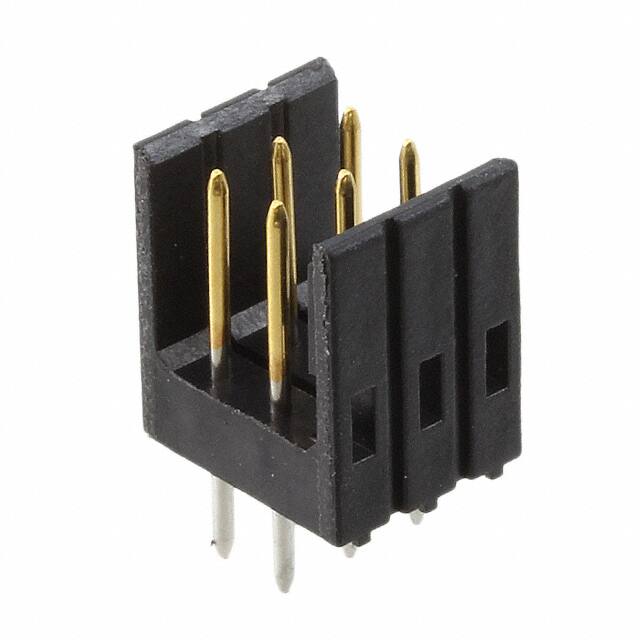

The TE Connectivity 826469-3 is a rectangular connector header from the AMPMODU Mod II series. It features 6 male pin contacts arranged in 2 rows on a 2.54mm pitch and row spacing, suitable for board-to-board or cable applications.
This header is shrouded with a 2-wall design and includes a latch holder for secure mating. The contacts are made of phosphor bronze with a gold mating finish (3.90µin) and tin post finish (118.1µin). The insulator is black glass-filled PCT with a UL94 V-0 flammability rating.
Packaged in bulk and designed for through-hole solder termination, this connector operates over a temperature range of -55°C to 105°C, making it suitable for a variety of environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.05 | $2.05 |
| 10+ | $1.81 | $1.81 |
| 300+ | $1.36 | $1.36 |
| 600+ | $1.30 | $1.30 |
| 1,200+ | $1.23 | $1.23 |
| 2,700+ | $1.22 | $1.22 |
| 5,100+ | $1.16 | $1.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The mating and row spacing pitch is 2.54mm (0.100 inch).
It has 6 total positions, all loaded, arranged in 2 rows.
It is a through-hole mount with solder termination.
