| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,724 pcs
|
2724 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| China RoHS | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| ELV | |
| Fastening Type | |
| Halogen Content | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Solder Process Capability Code | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

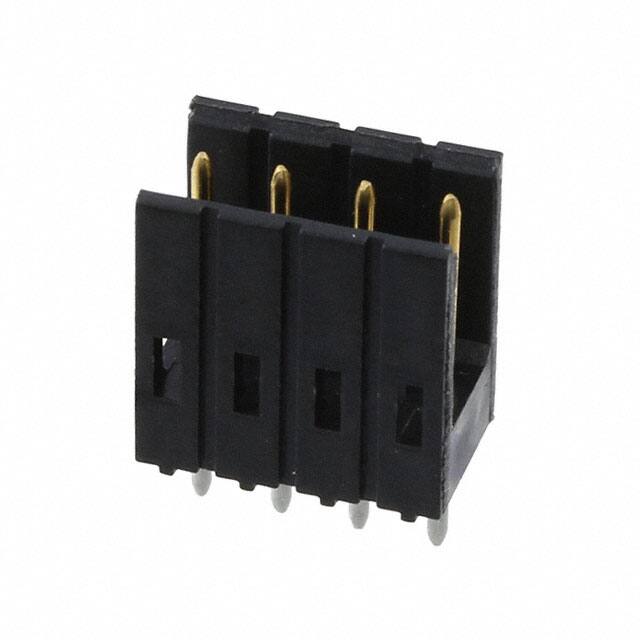

The TE Connectivity 826467-4 is a 4-position, single row, shrouded header from the MOD II product family. It features 2.54mm pitch, male square pin contacts made of phosphor bronze with a tin finish, and is designed for through hole solder termination.
The header has a black glass-filled PCT insulation body with a shrouded 2-wall design and a latch holder for secure mating. It is rated for a wide operating temperature range of -55°C to 105°C and is suitable for board-to-board or cable applications. The insulation material has a UL94 V-0 flammability rating.
The component is packaged in a through hole mounting configuration and is pin-in-paste capable to 260°C. Contact length is 3.20mm and insulation height is 10.00mm. The contact finish thickness is 3.90µm.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.89 | $1.89 |
| 10+ | $1.67 | $1.67 |
| 350+ | $1.66 | $1.66 |
| 2,800+ | $1.21 | $1.21 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100 inches).
It has 4 positions, all loaded, in a single row.
It is a through hole mount component with solder termination.
Yes, it is EU RoHS compliant per Directive 2011/65/EU.
The operating temperature range is -55°C to 105°C.
The insulation is made of glass-filled Polycyclohexylenedimethylene Terephthalate (PCT), rated UL94 V-0.
Yes, it is a shrouded header with a 2-wall design and a latch holder for secure fastening.
