| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19,500 pcs
|
19500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

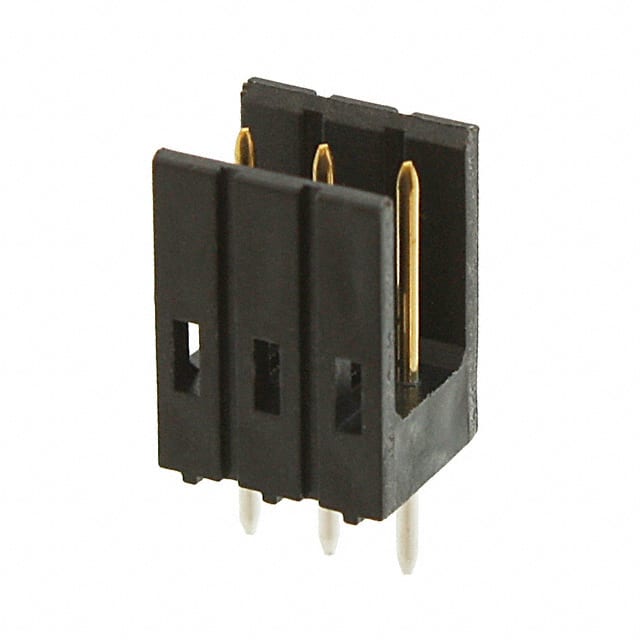

The 826467-3 is a 3-position, single-row shrouded header from TE Connectivity's AMPMODU II series. It features a 2.54mm (0.100") pitch and is designed for through hole solder termination. The header uses square male pins made of phosphor bronze with a tin contact finish.
The insulator is molded from black glass-filled PCT (Polycyclohexylenedimethylene Terephthalate) with a UL94 V-0 flammability rating. The shrouded design includes a 2-wall shroud and a latch holder fastening type for secure mating. The operating temperature range is -55°C to 105°C.
This connector is suitable for board-to-board or cable applications. The insulation height is 10.00mm (0.394") and the contact length is 3.20mm (0.126"). All positions are loaded.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.65 | $1.65 |
| 10+ | $1.42 | $1.42 |
| 100+ | $1.20 | $1.20 |
| 500+ | $1.07 | $1.07 |
| 1,000+ | $1.01 | $1.01 |
| 5,000+ | $0.91 | $0.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 826467-3 has 3 positions in a single row, all loaded.
The pitch is 2.54mm (0.100").
The mounting type is through hole with solder termination.
The operating temperature range is -55°C to 105°C.
The contacts are made of phosphor bronze with a tin finish. The tin finish thickness is 3.90µin (0.099µm).
The insulator is made of glass-filled PCT (Polycyclohexylenedimethylene Terephthalate) and has a UL94 V-0 flammability rating.
The fastening type is a latch holder.
