825440-4 TE Connectivity 825440-4 is an 8 position, 2 row, 2.54mm pitch unshrouded through hole header with tin plated brass contacts.
Mfr Part #:

825440-4

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 825440-4 is an 8 position, 2 row, 2.54mm pitch unshrouded through hole header with tin plated brass contacts.
✓ Total Stock: 6,576 pcs
$ Price Range: $0.91 - $1.63

825440-4 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
6,552 pcs
On Request
6552 pcs On Request 1 On Request On Request On Request On Request On Request
Seba Components ✓
Non-Authorised Inventory information
24 pcs
On Request
24 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

825440-4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Termination Style
View Similar Products (0)

825440-4 Description

Short technical summary and product information.

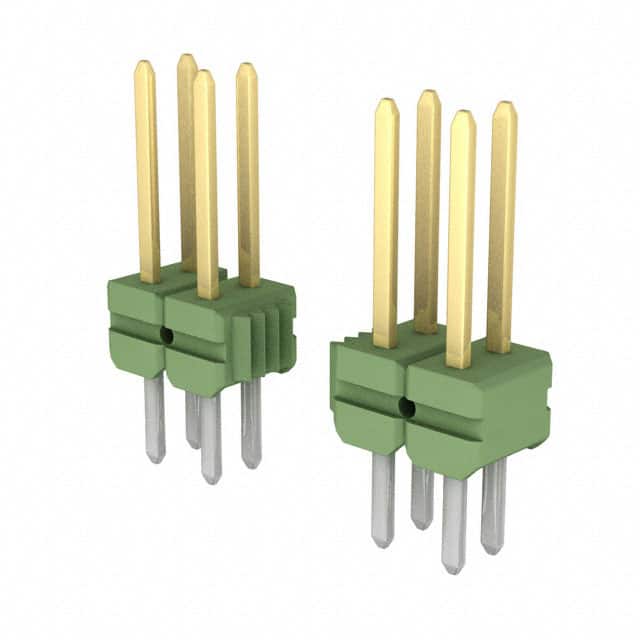

The TE Connectivity 825440-4 is an 8 position, 2 row unshrouded header from the AMPMODU II family. It features a 2.54mm (0.100") pitch and row spacing, making it suitable for board-to-board or cable applications. The header uses through hole mounting with solder termination and a push-pull fastening type.



Contacts are made of brass with a tin finish (3.90µin thickness) and have a square shape. The overall contact length is 0.500" (12.70mm) with a contact length of 6.70mm (0.264"). The green PBT insulator has a flammability rating of UL94 V-0 and an insulation height of 2.79mm (0.110").



This component is designed for an operating temperature range of -65°C to 105°C. All 8 positions are loaded. The part is RoHS3 compliant and REACH unaffected (unverified).

825440-4 Quick Information

Product Type: Header
Canonical Name: TE Connectivity AMPMODU II 8 Position 2.54mm Pitch Through Hole Header
Subcategory: Unshrouded Header

825440-4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

825440-4 Estimated Pricing

Qty Low High
1+ $1.63 $1.63
10+ $1.42 $1.42
25+ $1.36 $1.36
100+ $1.27 $1.27
250+ $1.15 $1.15
504+ $1.06 $1.06
1,008+ $0.95 $0.95
2,520+ $0.91 $0.91

Estimated market price range - modelled values for guidance only, not live distributor offers.

825440-4 Features

  • 8 position 2.54mm pitch header.
  • Through hole solder termination.
  • Tin plated brass square contacts.
  • UL94 V-0 rated green PBT insulator.
  • Operating temperature -65°C to 105°C.

825440-4 Applications

  • Board-to-board interconnect applications.
  • Cable-to-board connection systems.
  • General purpose signal routing.

825440-4 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the pitch of the 825440-4 header?

The pitch is 2.54mm (0.100").

How many positions does the 825440-4 have?

It has 8 positions arranged in 2 rows.

What is the mounting type for this header?

Through hole mounting with solder termination.

What is the operating temperature range?

-65°C to 105°C.

What is the contact material and finish?

Brass contacts with a tin finish (3.90µin).

Is the header shrouded or unshrouded?

It is unshrouded.
