| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

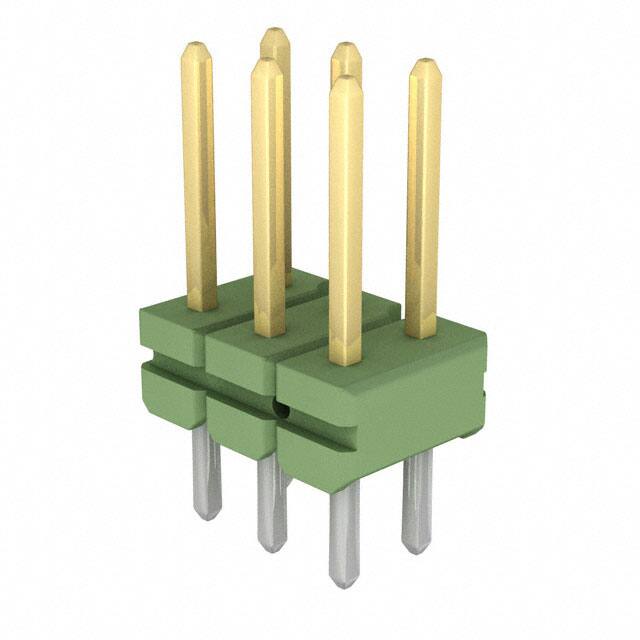

The TE Connectivity 825440-3 is a 6-position, 2-row through-hole header with a 2.54mm pitch. It features unshrouded male square pins and solder termination, making it suitable for board-to-board or cable connections. The push-pull fastening type ensures secure mating.
The contacts are made of brass with a tin plating of 0.099µm, providing good solderability and corrosion resistance. The green insulation is molded from Polybutylene Terephthalate (PBT) with a UL94 V-0 flammability rating, ensuring safety in demanding environments. The operating temperature range is -65°C to 105°C.
Mechanical dimensions include an overall contact length of 12.70mm, a mating pin length of 6.70mm, and an insulation height of 2.79mm. The header is designed for through-hole mounting and is compatible with standard 2.54mm spacing.
Compliance data indicates RoHS3 compliance, REACH unaffected, and MSL 1 (unlimited) moisture sensitivity level. Note that these compliance values are based on unverified database entries. The part is widely used in industrial control, automation, and general purpose electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.71 | $1.71 |
| 10+ | $1.50 | $1.50 |
| 100+ | $1.36 | $1.36 |
| 800+ | $1.11 | $1.11 |
| 5,600+ | $1.02 | $1.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions arranged in 2 rows.
2.54mm (0.100") between positions.
Through-hole with solder termination.
-65°C to 105°C.
Brass contacts with tin plating of 0.099µm (3.90µin).
RoHS3 compliant (unverified, low confidence).
Green Polybutylene Terephthalate (PBT) with UL94 V-0 rating.
