| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,316 pcs
|
7316 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

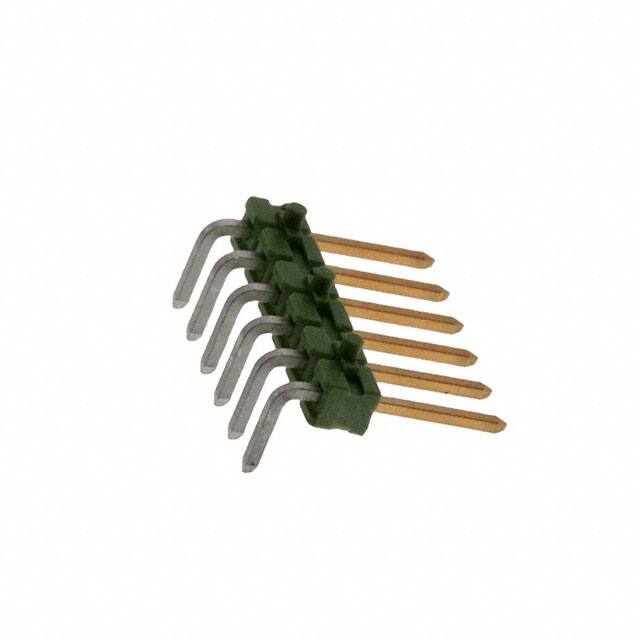

The TE Connectivity 825437-6 is a 6-position, single row, unshrouded male pin header with a 2.54mm (0.100") pitch. It features a right-angle through-hole mounting style for perpendicular board connections. The header is part of the AMPMODU II breakaway series, allowing for easy customization of pin count. The contacts are made of brass with a tin finish, and the insulator is green polybutylene terephthalate (PBT) rated UL94 V-0. It operates over a temperature range of -65°C to 105°C and is rated for a current of 5A.
The header has a contact length of 6.70mm (0.264") and an insulation height of 2.54mm (0.100"). The push-pull fastening type ensures secure mating. This connector is suitable for board-to-board or cable applications. The single-row design with 2.54mm pitch is common in many electronic assemblies.
The product is RoHS and REACH compliant per the distributor listing, though these compliance claims are unverified. A product change notification indicates a plating and material change, but the current specification lists tin contact finish. Designers should verify the latest specifications with the manufacturer for critical applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.79 | $1.79 |
| 10+ | $1.60 | $1.60 |
| 100+ | $1.40 | $1.40 |
| 250+ | $1.35 | $1.35 |
| 504+ | $1.25 | $1.25 |
| 1,008+ | $1.17 | $1.17 |
| 2,520+ | $0.99 | $0.99 |
| 5,040+ | $0.93 | $0.93 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions, all loaded.
2.54mm (0.100").
5A.
Through hole, right angle.
-65°C to 105°C.
Tin, with a thickness of 3.90µin (0.099µm). Note: a PCN indicates a change to PdNi+Au flash; verify with manufacturer.
Polybutylene Terephthalate (PBT) with UL94 V-0 flammability rating.
