| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,090 pcs
|
2090 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

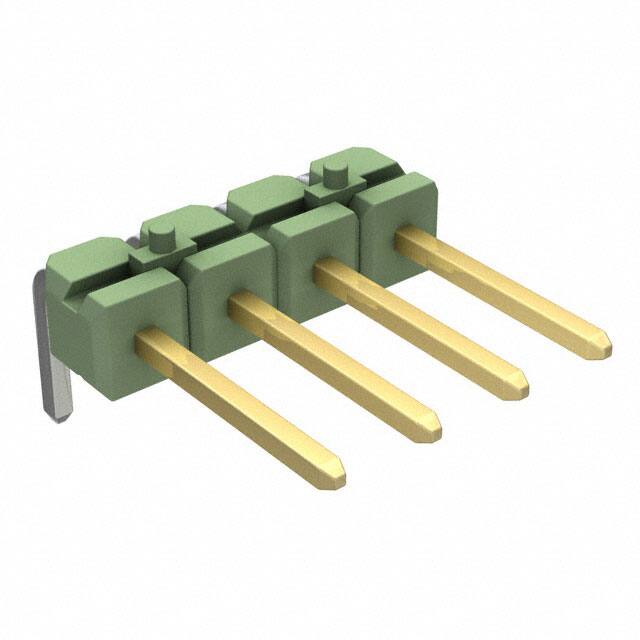

The TE Connectivity 825437-4 is a 4-position, single-row, unshrouded male pin header from the AMPMODU MOD II series. It features a right-angle orientation with through-hole termination, making it suitable for board-to-board or cable connections. The header has a 2.54mm pitch and offers a current rating of 5A. Contacts are made of brass with a tin finish, providing reliable conductivity. The insulation is green polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating, ensuring safety in various applications. The operating temperature range is -65°C to 105°C. This header is designed for push-pull fastening and has a breakaway design, allowing for customization of pin count.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.06 | $1.06 |
| 10+ | $0.90 | $0.90 |
| 25+ | $0.86 | $0.86 |
| 100+ | $0.81 | $0.81 |
| 250+ | $0.56 | $0.56 |
| 700+ | $0.52 | $0.52 |
| 5,600+ | $0.51 | $0.51 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
2.54mm (0.100")
5A
Through Hole, Right Angle
-65°C to 105°C
Tin, 3.90µin thickness
Polybutylene Terephthalate (PBT), green color, UL94 V-0 rated
