Mfr Part #:

825437-3

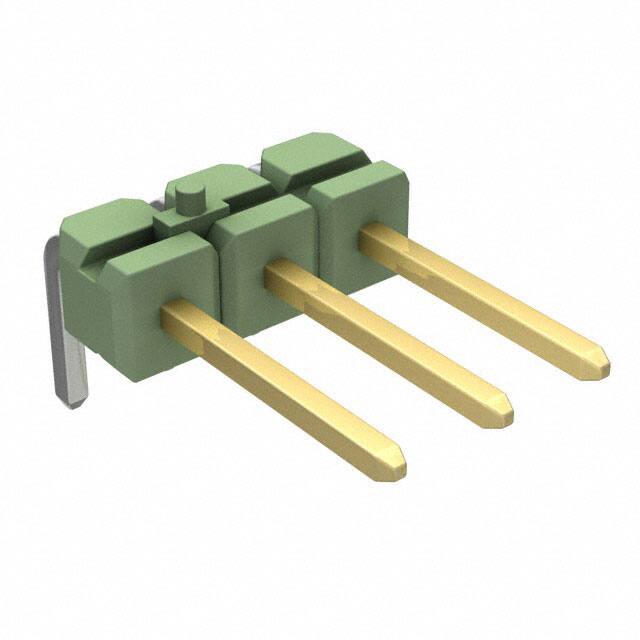

TE Connectivity 825437-3 is a 3-position, 1-row, right-angle header with male pins, 2.54mm pitch, unshrouded, through hole mounting, solder termination, tin plated brass contacts, rated 5A, operating temperature -65°C to 105°C.

✓ Total Stock: 8 pcs

$ Price Range: $0.50

825437-3 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
MW.FEP S.p.A. ✓ Non-Authorised Inventory information	8 pcs On Request	8 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

825437-3 Description

Short technical summary and product information.

TE Connectivity 825437-3 is a header connector with male pins, featuring 3 positions arranged in a single row with a 2.54mm pitch. The right-angle orientation allows for compact board-to-board or cable connections. The unshrouded design uses a push-pull fastening mechanism for easy mating.

The contacts are made of brass with a tin plating (3.90µin thickness) and have a square shape. The contact length is 6.70mm, and the insulation height is 2.54mm. The insulator is green polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating. The connector is rated for 5A current and operates over a temperature range of -65°C to 105°C.

Mounting is through hole with right-angle solder termination. The connector is suitable for board-to-board or cable-to-board applications in control units, industrial electronics, and general purpose signal/ power connections. Compliance data indicates RoHS3, REACH, and MSL1 (unverified), with a note that the datasheet and manufacturer page are not accessible for verification.

825437-3 Quick Information

Product Type: Header, Male Pins

Series: MOD 2

Canonical Name: TE Connectivity 825437-3 Header, Male Pins, 3 Position, 2.54mm Pitch, Right Angle

Subcategory: Breakaway

825437-3 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

825437-3 Estimated Pricing

Qty	Low	High
1+	$0.50	$0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

825437-3 Features

3-position, 1-row, 2.54mm pitch header.
Right-angle through hole mounting design.
Tin-plated brass contacts for conductivity.
Unshrouded with push-pull fastening type.
Rated for 5A current and -65°C to 105°C.

825437-3 Applications

Board-to-board interconnection in compact designs.
Cable-to-board connections in control units.
General purpose signal and power headers.
Industrial and commercial electronic assemblies.

825437-3 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the 825437-3 have?

3 positions.

What is the pitch of the 825437-3?

2.54mm (0.100 inches).

What is the current rating of the 825437-3?

5A.

What is the mounting style of the 825437-3?

Through hole, right angle.

What is the operating temperature range?

-65°C to 105°C.

What is the contact material and finish?

Brass contacts with tin plating (3.90µin thickness).

Is the 825437-3 shrouded?

No, it is unshrouded.

Category	Headers, Male Pins
Manufacturer Name	TE Connectivity
Connector Type	Header, Breakaway
Contact Finish	Tin
Contact Finish Thickness	3.90µin (0.099µm)
Contact Length	6.70mm (0.264")
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	5A
Fastening Type	Push-Pull
Insulation Color	Green
Insulation Height	2.54mm (0.100")
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	3
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature	-65°C ~ 105°C
Pitch	2.54mm (0.100")
Shrouding	Unshrouded
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
