| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,500 pcs
|
6500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector System | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| PCB Mount Retention | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

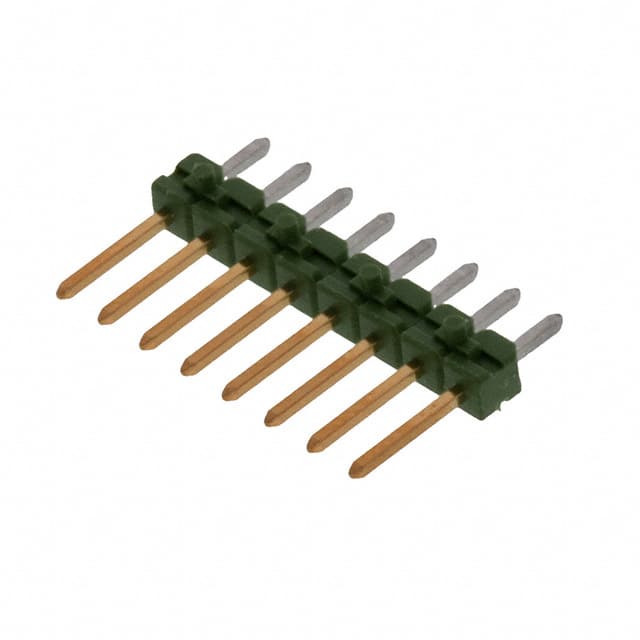

This is a TE Connectivity AMPMODU series breakaway header, part number 825433-8. It is an 8-position, single-row, vertical through-hole header with a 2.54mm pitch. It is designed for board-to-board or cable connections.
The header features male square pins with brass contacts, tin termination area plating, and gold or gold flash over palladium nickel mating area plating. It is rated for 5A current and has a dielectric withstanding voltage of 750Vrms. Insulation resistance is 5000 MΩ. Operating temperature range is -65°C to 105°C. The housing is green PBT with UL94 V-0 flammability rating.
This unshrouded header uses a push-pull fastening type and is suitable for signal circuit applications. It comes in a bulk package. The contact length is 6.70mm overall, with a mating square post dimension of 0.64mm. It is RoHS and REACH compliant (unverified).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.80 | $2.80 |
| 10+ | $2.55 | $2.55 |
| 25+ | $2.22 | $2.22 |
| 100+ | $2.02 | $2.02 |
| 250+ | $1.86 | $1.86 |
| 500+ | $1.75 | $1.75 |
| 1,000+ | $1.67 | $1.67 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions.
2.54 mm (0.100 inch).
5 A.
Through hole, vertical orientation.
-65°C to 105°C.
Green PBT (Polybutylene Terephthalate) with UL94 V-0 rating.
Board-to-board.
