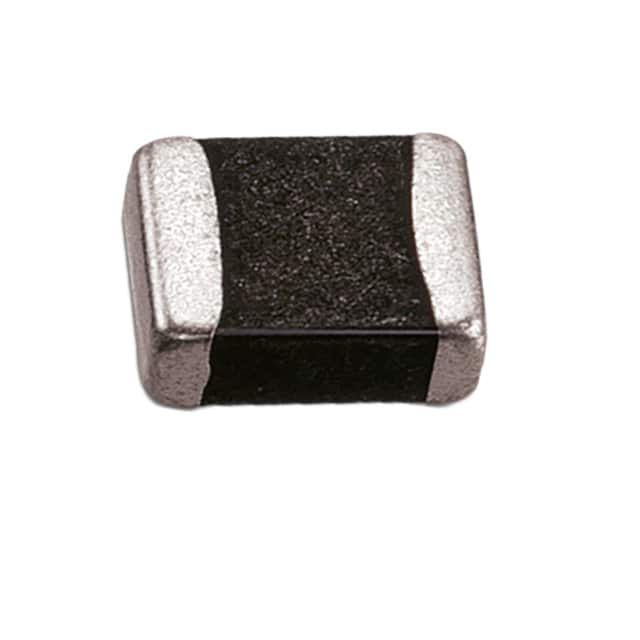

82541350 SMT varistor in 1206 package, rated for 35V AC / 45V DC operation with 200A peak pulse current and 0.8J energy absorption.
Mfr Part #:

82541350

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
SMT varistor in 1206 package, rated for 35V AC / 45V DC operation with 200A peak pulse current and 0.8J energy absorption.
✓ Total Stock: 38,000 pcs
$ Price Range: $0.58 - $1.03

82541350 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
38,000 pcs
On Request
38000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

82541350 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Capacitance
Capacitance @ Frequency
Conflict Minerals
Current
Energy
Halogen Free
Height
Industrial Grade
Length
Maximum AC Volts
Maximum DC Volts
Medical Grade
Military Grade
Mounting Type
Number of Circuits
Operating Temperature
Package / Case
SVHC Present
Storage Temperature
Tape & Reel
Termination Style
Varistor Voltage (Max)
Varistor Voltage (Min)
Varistor Voltage (Typ)
Width
View Similar Products (0)

82541350 Description

Short technical summary and product information.

The Würth Elektronik 82541350 is a surface-mount varistor from the WE-VS series, designed for overvoltage protection in compact electronic circuits. It is housed in a standard 1206 (3216 metric) package with dimensions 3.2 mm x 1.6 mm and a maximum height of 1.7 mm.



Key electrical specifications include a varistor voltage of 56 V (typical at 1 mA), a clamping voltage of 90 V at 1.0 A (8/20 µs), and a peak pulse current rating of 200 A (8/20 µs). The device can absorb up to 0.8 J of energy (10/1000 µs) and has a typical capacitance of 400 pF at 1 kHz.



The operating temperature range is -40°C to +85°C. The component is RoHS compliant, REACH conform, halogen-free, and has an MSL rating of 1 (unlimited). It is suitable for use in general electronic equipment where transient voltage suppression is required.

82541350 Quick Information

Product Type: Varistor
Series: WE-VS
Canonical Name: WE-VS SMT Varistor 1206 35V
Subcategory: TVS - Varistors, MOVs

82541350 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 75
REACH Status: Compliant
Lead Free: Yes

82541350 Estimated Pricing

Qty Low High
1+ $1.03 $1.03
5+ $0.80 $0.80
10+ $0.78 $0.78
25+ $0.70 $0.70
50+ $0.58 $0.58
4,000+ $0.58 $0.58

Estimated market price range - modelled values for guidance only, not live distributor offers.

82541350 Features

  • Surface mount varistor in 1206 package.
  • Rated for 35V AC and 45V DC operation.
  • 200A peak pulse current capability.
  • 0.8J energy absorption rating.
  • RoHS and REACH compliant.

82541350 Applications

  • Overvoltage protection in consumer electronics.
  • Transient suppression in power supply circuits.
  • ESD protection for I/O lines.
  • Used in automotive and industrial control.

82541350 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the clamping voltage of the 82541350?

The maximum clamping voltage is 90 V at 1.0 A (8/20 µs).

What is the peak pulse current rating?

The maximum peak pulse current is 200 A (8/20 µs).

What is the package type?

The package is 1206 (3216 Metric), surface mount.

What is the varistor voltage?

The varistor voltage is 56 V typical (50.4 V min, 61.6 V max) at 1 mA.

What is the operating temperature range?

The operating temperature range is -40°C to +85°C.

Is the 82541350 RoHS compliant?

Yes, it is RoHS compliant per 2011/65/EU & 2015/863.
