| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
454 pcs
|
454 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Capacitance @ Frequency | |
| Current | |
| Halogen Free | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Power Line Protection | |
| SVHC Present | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Unidirectional Channels | |
| Voltage |

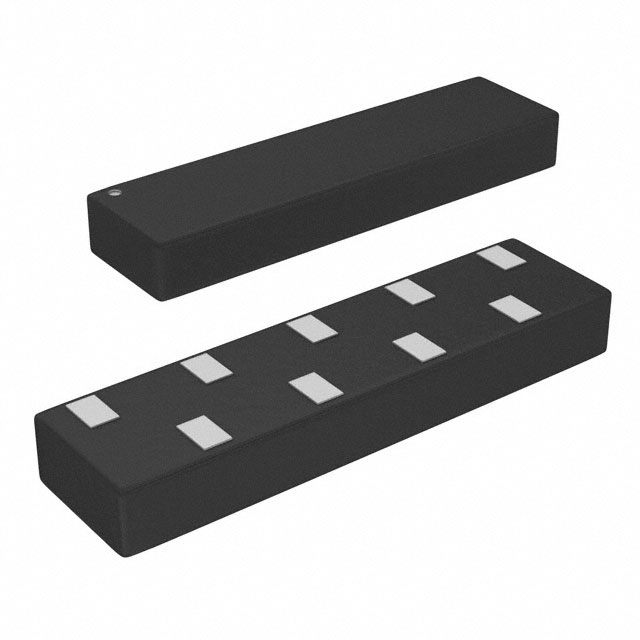

The Würth Elektronik 824014883 is a TVS diode designed for high-speed data line protection. It features 8 unidirectional steering channels in a rail-to-rail configuration, providing robust ESD protection for sensitive electronics. Key electrical specifications include a reverse standoff voltage of 3.3V, a typical clamping voltage of 9V, and a peak pulse current rating of 5A (8/20µs). The device offers low capacitance of 0.5pF at 1MHz, making it suitable for high-frequency interfaces. ESD capability is rated at 15kV air discharge and 12kV contact discharge, compliant with IEC 61000-4-2. The diode is housed in a compact DFN3810-9 surface-mount package (9-UDFN), with an operating temperature range of -55°C to +85°C. It is RoHS, REACH, and halogen-free compliant, with MSL 3 moisture sensitivity level.
The reverse standoff voltage is 3.3V.
The breakdown voltage is 4.5V minimum and 7V maximum at 1mA.
The typical clamping voltage is 9V.
The peak pulse current is 5A (tp=8/20µs).
The package is 9-UDFN, supplier device package DFN3810-9.
The typical capacitance is 0.5 pF at 1MHz.
The operating temperature range is -55°C to +85°C.
