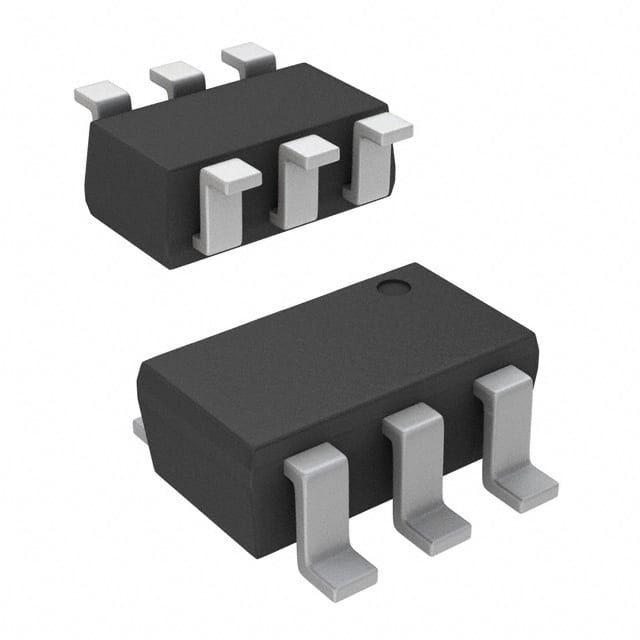

The 82400274 is a high-speed TVS diode from Würth Elektronik's WE-TVS series, designed for steering (rail-to-rail) ESD protection. It features 4 unidirectional channels with a nominal operating voltage of 5 V (I/O to GND) and a maximum DC operating voltage of 6 V (VDD to GND). The device provides a typical clamp voltage of 9 V under TLP conditions (100 ns pulse, 1 ns rise time) and can handle peak pulse currents up to 6 A (8/20 µs waveform) and 40 A (EFT, 5/50 ns).
ESD protection meets IEC 61000-4-2 standards with air discharge capability of 16 kV and contact discharge capability of 12 kV. The diode is suitable for protecting Ethernet interfaces and other high-speed data lines. It is housed in a compact SC70-6L surface-mount package (also known as 6-TSSOP, SC-88, SOT-363) and operates over a temperature range of -55 °C to +85 °C.
The component is RoHS compliant (2011/65/EU & 2015/863), REACh conform, and halogen free per JEDEC JS709B and IEC 61249-2-21. Moisture sensitivity level is MSL 3.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.05 | $1.05 |
| 10+ | $1.00 | $1.00 |
| 50+ | $0.94 | $0.94 |
| 100+ | $0.87 | $0.87 |
| 500+ | $0.77 | $0.77 |
| 3,000+ | $0.67 | $0.67 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal operating voltage is 5 V (I/O to GND) with a maximum DC operating voltage of 6 V (VDD to GND).
The typical clamp voltage is 9 V, measured under TLP conditions (tp=100ns, tr=1ns).
It provides ESD protection up to 16 kV air discharge and 12 kV contact discharge per IEC 61000-4-2.
The maximum peak pulse current is 6 A for an 8/20 µs waveform and 40 A for an EFT 5/50 ns waveform.
It is available in a SC70-6L surface-mount package (also known as 6-TSSOP, SC-88, SOT-363).
Yes, it is RoHS compliant per 2011/65/EU & 2015/863.
The operating temperature range is -55 °C to +85 °C (junction temperature).
