| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Clamp Voltage (Typ) | |
| Current | |
| ESD Air Discharge | |
| ESD Contact Discharge | |
| Halogen Free | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Peak Pulse Current (Maximum @ 5/50 ns) | |
| Peak Pulse Current (Maximum @ 8/20 µs) | |
| Power Line Protection | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Unidirectional Channels | |
| Voltage | |
| Voltage - Reverse Standoff (Vrwm) |

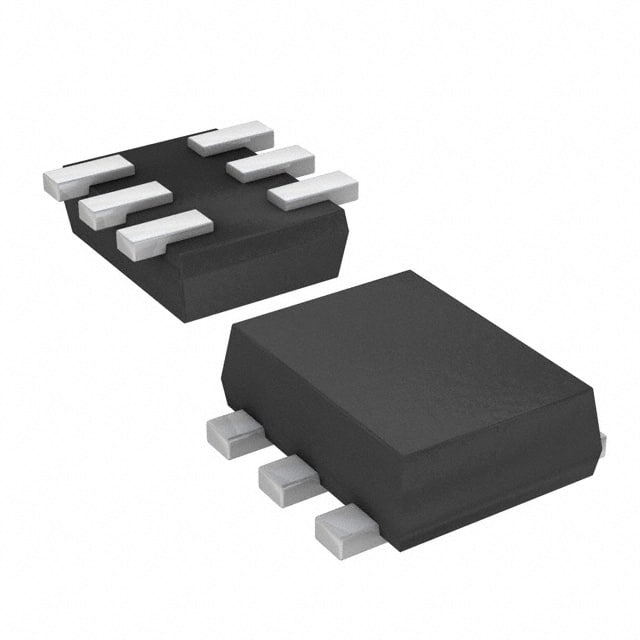

The Würth Elektronik 82400152 is a steering (rail-to-rail) TVS diode from the WE-TVS series, designed for high-speed ESD and surge protection. It features two unidirectional channels plus an optional VDD channel (2+1 configuration). The device provides a reverse standoff voltage of 5 V and a typical clamp voltage of 7.7 V.
Electrical protection capabilities include a peak pulse current of 6 A (8/20 µs) and 40 A for EFT (5/50 ns). ESD ratings reach 15 kV air discharge and 8 kV contact discharge, compliant with IEC 61000-4-2. The diode operates over a temperature range of -55°C to +125°C and is housed in a compact SOT-563 surface-mount package.
The device is RoHS compliant (2011/65/EU & 2015/863), REACH conform, and halogen free per JEDEC JS709B and IEC 61249-2-21. Moisture sensitivity level is MSL 3.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.86 | $0.86 |
| 10+ | $0.82 | $0.82 |
| 50+ | $0.77 | $0.77 |
| 100+ | $0.71 | $0.71 |
| 500+ | $0.63 | $0.63 |
| 3,000+ | $0.55 | $0.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 V.
7.7 V (typical).
6 A for 8/20 µs pulses and 40 A for EFT 5/50 ns pulses.
SOT-563.
15 kV air discharge and 8 kV contact discharge.
2 unidirectional channels (with an optional VDD channel per datasheet).
Yes, compliant with 2011/65/EU & 2015/863.
