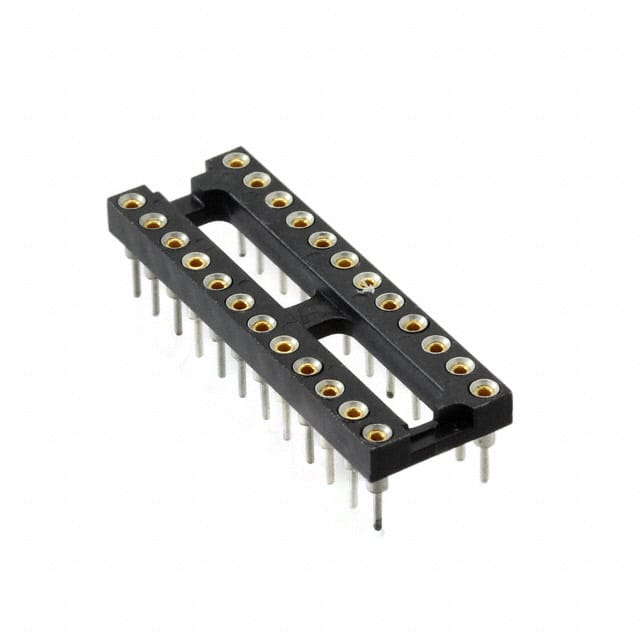

824-AG31D-ES TE Connectivity 824-AG31D-ES is a 24-position DIP socket with 0.3" (7.62mm) row spacing. It features a through hole mounting style and tin-lead plated contacts.
Mfr Part #:

824-AG31D-ES

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 824-AG31D-ES is a 24-position DIP socket with 0.3" (7.62mm) row spacing. It features a through hole mounting style and tin-lead plated contacts.
Stock on Request
$ Price Range: $2.25 - $4.38

824-AG31D-ES Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
DYNACO PRODUCTS ✓
Non-Authorised Inventory information
On Request
On Request
On Request On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

824-AG31D-ES Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Finish
Contact Material
Features
Housing Material
Lead Spacing
Lead Style
Mounting Type
Number of Positions or Pins (Grid)
Operating Temperature
Pitch
Termination
Type
View Similar Products (0)

824-AG31D-ES Description

Short technical summary and product information.

This IC socket is designed for use with DIP packages and features a 24-position (2x12) layout with 2.54mm pitch and 0.3" (7.62mm) row spacing. The through hole mounting allows for secure soldering to PCBs. The open frame design aids in heat dissipation and facilitates cleaning. Contacts are made of copper alloy with a tin-lead finish, while the housing is constructed from polyester. The socket operates over a temperature range of -55°C to 105°C. It is suitable for prototyping and production applications where reliable connections are needed. The tin-lead finish provides good solderability, and the open frame allows for visual inspection of solder joints. The socket is RoHS3 compliant (unverified).

824-AG31D-ES Quick Information

Product Type: IC Socket
Series: 824
Canonical Name: TE Connectivity 824-AG31D-ES DIP Socket, 24 (2x12) Positions, 0.3" (7.62mm) Row Spacing
Subcategory: IC Sockets

824-AG31D-ES Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

824-AG31D-ES Estimated Pricing

Qty Low High
1+ $4.38 $4.38
10+ $3.99 $3.99
20+ $3.15 $3.15
100+ $2.98 $2.98
260+ $2.72 $2.72
500+ $2.63 $2.63
1,000+ $2.32 $2.32
2,500+ $2.25 $2.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

824-AG31D-ES Features

  • 24-position DIP socket with 2.54mm pitch.
  • Through hole mounting for reliable solder connections.
  • Open frame design for improved heat dissipation.
  • Tin-lead contact finish for good solderability.
  • Copper alloy contacts for durability.

824-AG31D-ES Applications

  • Used for prototyping and production IC sockets.
  • Ideal for DIP package integration on PCBs.
  • Suitable for industrial temperature environments.
  • Applied in connector and interconnect systems.

824-AG31D-ES FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this socket have?

24 positions (2x12).

What is the pitch of the socket?

2.54mm (0.100").

What is the mounting type?

Through hole.

What is the operating temperature range?

-55°C to 105°C.

What is the contact finish?

Tin-Lead.

What is the housing material?

Polyester.

Is this socket RoHS compliant?

According to the database, it is RoHS3 compliant, but this status is unverified.
