| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
138 pcs
|
138 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Housing Material | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Operating Temperature Range | |
| Package Style | |
| Pitch | |
| Row Spacing | |
| Socket Type | |
| Termination | |
| Type |

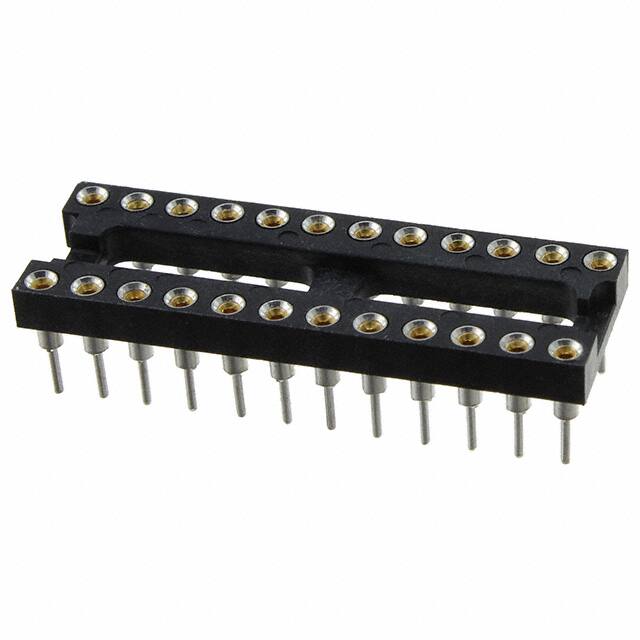

The TE Connectivity 824-AG31D is a 24-position DIP socket designed for through-hole mounting. It features a 2.54mm (0.100") pitch and 7.62mm (0.300") row spacing, making it suitable for standard 24-pin DIP ICs.
The socket uses a copper alloy contact material with a Tin-Lead finish (25.0µin / 0.63µm thickness) and a polyester housing. The open frame design allows for improved airflow and easier inspection of solder joints. It operates over a temperature range of -55°C to 105°C.
This socket is intended for use in applications requiring reliable interconnection of DIP-packaged ICs to printed circuit boards. The through-hole termination provides a robust mechanical connection.
| Qty | Low | High |
|---|---|---|
| 1+ | $18.02 | $18.02 |
| 10+ | $13.37 | $13.37 |
| 20+ | $11.35 | $11.35 |
| 100+ | $11.19 | $11.19 |
| 260+ | $11.18 | $11.18 |
| 500+ | $10.98 | $10.98 |
| 1,000+ | $10.25 | $10.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
24 positions (2 x 12).
2.54mm (0.100").
Through hole.
-55°C to 105°C.
Tin-Lead with a thickness of 25.0µin (0.63µm).
