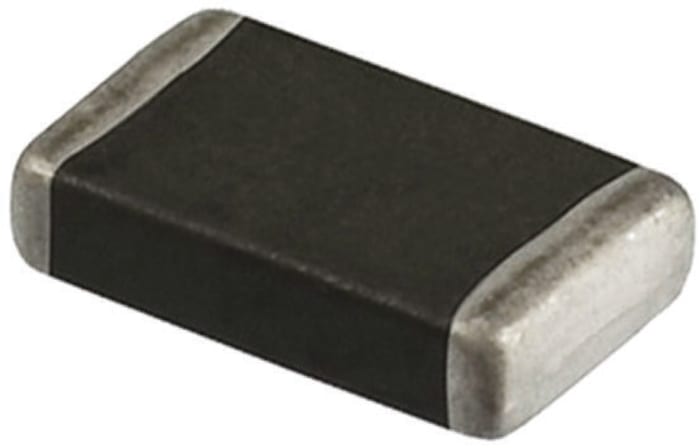

82306050029 ESD protection TVS diode by Würth Elektronik with 5V working voltage, 0.2pF capacitance, and sub-1ns response time. Supplied in a 0603 SMD package.
Mfr Part #:

82306050029

Available from 2 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
ESD protection TVS diode by Würth Elektronik with 5V working voltage, 0.2pF capacitance, and sub-1ns response time. Supplied in a 0603 SMD package.
✓ Total Stock: 5,099 pcs
$ Price Range: $0.60 - $0.74

82306050029 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
4,907 pcs
On Request
4907 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
192 pcs
On Request
192 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

82306050029 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Body Material
Capacitance
Mounting Type
Number of Circuits
Operating Temperature Range
Package / Case
Storage Temperature
Supplier Device Package
Tape & Reel
Voltage
Working Voltage
View Similar Products (0)

82306050029 Description

Short technical summary and product information.

The Würth Elektronik 82306050029 is an ultra-low capacitance ESD protection TVS diode designed in a compact 0603 (1608 Metric) surface mount package. It features a working voltage of 5 V and a maximum clamping voltage of 30 V at 8/20 µs waveform with 1 A pulse current. The trigger voltage is typically 150 V.



With an ultra-low capacitance of 0.2 pF (measured at 1 MHz), this device is well-suited for high-speed data lines where signal integrity is critical. It offers ESD withstand capability exceeding 100 kV (contact discharge) and 15 kV (air discharge), complying with IEC 61000-4-2 standard. The response time is less than 1 ns.



The device operates over a temperature range of -40 °C to +85 °C and can withstand soldering temperatures up to 260 °C for 10 seconds. Construction features a ZnO body with Ag/Ni/Sn end terminations. The product is RoHS compliant and supplied on tape and reel.

82306050029 Quick Information

Product Type: TVS Diode (ESD Protection)
Series: WE-VE
Canonical Name: Würth Elektronik 82306050029 ESD Protection TVS Diode
Subcategory: ESD Suppressor

82306050029 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

82306050029 Estimated Pricing

Qty Low High
1+ $0.74 $0.74
10+ $0.73 $0.73
50+ $0.72 $0.72
100+ $0.69 $0.69
500+ $0.66 $0.66
1,000+ $0.63 $0.63
2,500+ $0.60 $0.60
5,000+ $0.60 $0.60

Estimated market price range - modelled values for guidance only, not live distributor offers.

82306050029 Features

  • 5V working voltage with 30V clamping.
  • Ultra-low 0.2pF capacitance at 1MHz.
  • ESD withstand >100kV contact discharge.
  • Sub-1ns fast response time.
  • 0603 surface mount package.

82306050029 Applications

  • Protects high-speed data lines from ESD.
  • Suitable for USB, HDMI, and Ethernet ports.
  • Used in mobile and portable electronics.
  • Designed for general purpose interface protection.

82306050029 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the clamping voltage of the 82306050029?

The maximum clamping voltage is 30 V at 8/20 µs waveform with 1 A pulse current.

What is the capacitance of this TVS diode?

The capacitance is 0.2 pF measured at 1 MHz.

What is the ESD withstand capability?

It can withstand >100 kV contact discharge and 15 kV air discharge per IEC 61000-4-2.

What package is the 82306050029 available in?

It comes in a 0603 (1608 Metric) surface mount package.

What is the operating temperature range?

The operating temperature range is -40 °C to +85 °C.
