| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
117 pcs
|
117 pcs | On Request | 1 | On Request | On Request | 95 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Housing Material | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions or Pins (Grid) | |
| Package Type | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Type |

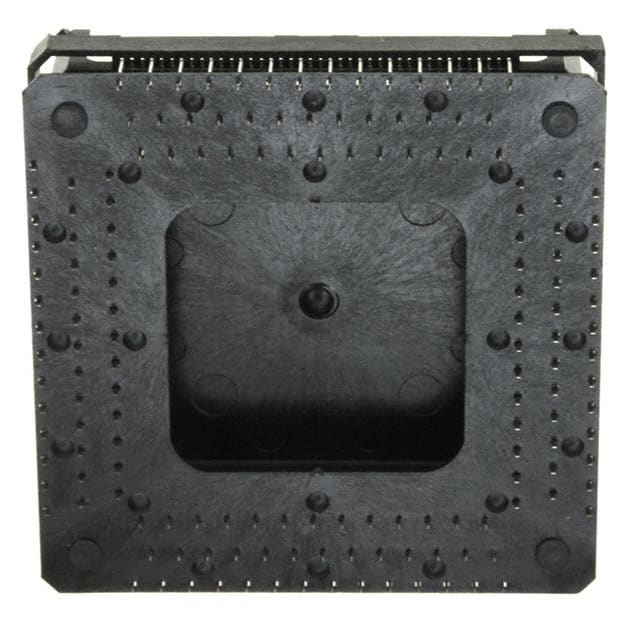

The TE Connectivity 822114-4 is a through-hole IC socket designed for PQFP (Plastic Quad Flat Pack) packages. It features 160 positions arranged in a 4 x 40 grid with a 1.27mm (0.050") pitch, making it suitable for high-density interconnections.
The socket uses a closed-frame design with a liquid crystal polymer (LCP) housing and phosphor bronze contacts. The contacts have a tin-lead finish with a thickness of 200.0µin (5.08µm). Termination is via solder to the PCB.
This socket is intended for applications requiring reliable, removable connections for PQFP devices in through-hole mounting. The closed frame provides mechanical protection and alignment during insertion.
The pitch is 1.27mm (0.050").
It has 160 positions arranged in a 4 x 40 grid.
Through hole.
Tin-lead with a thickness of 200.0µin (5.08µm).
Liquid Crystal Polymer (LCP).
