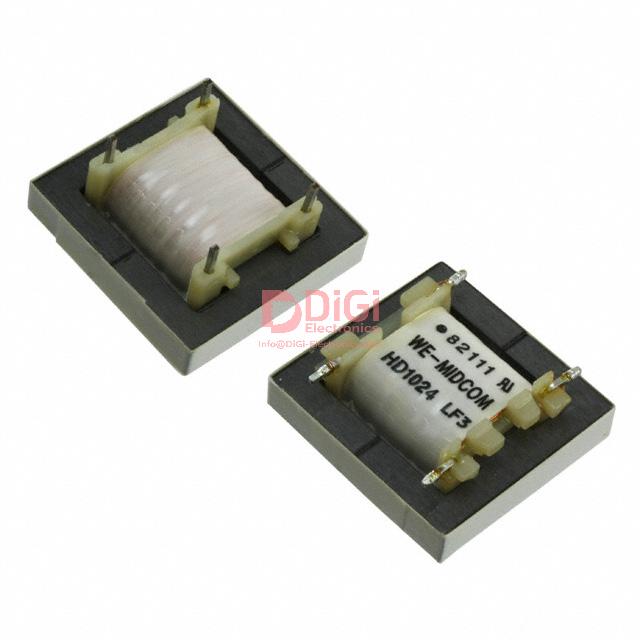

82111-LF3 The Würth Elektronik 750082111 is a pulse transformer featuring a 1:1 turns ratio and through-hole mounting. It operates within a temperature range of -40°C to 85°C.
Mfr Part #:

82111-LF3

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
The Würth Elektronik 750082111 is a pulse transformer featuring a 1:1 turns ratio and through-hole mounting. It operates within a temperature range of -40°C to 85°C.
✓ Total Stock: 747 pcs
$ Price Range: $0.39

82111-LF3 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
747 pcs
On Request
747 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

82111-LF3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Operating Temperature
Turns Ratio
View Similar Products (0)

82111-LF3 Description

Short technical summary and product information.

This Würth Elektronik 750082111 is a pulse transformer designed for analog modem PCB applications. It features a 1:1 turns ratio and is designed for through-hole mounting.



The transformer has dimensions of 0.945" L x 0.906" W (24.00mm x 23.00mm) with a maximum seated height of 0.490" (12.45mm). It operates reliably within an extended temperature range of -40°C to 85°C.



This component is classified under the WE-AMT and MID-AMT series and comes in tray packaging. It is RoHS3 compliant, indicating adherence to environmental standards for hazardous substances.

82111-LF3 Quick Information

Product Type: Pulse Transformer
Series: WE-AMT, MID-AMT
Canonical Name: Würth Elektronik 750082111 Pulse Transformer
Subcategory: Fixed Inductors

82111-LF3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

82111-LF3 Estimated Pricing

Qty Low High
1+ $0.39 $0.39

Estimated market price range - modelled values for guidance only, not live distributor offers.

82111-LF3 Features

  • Pulse transformer for analog modem PCB.
  • 1:1 turns ratio for signal transmission.
  • Through hole mounting for robust connections.
  • Wide operating temperature range: -40°C to 85°C.
  • RoHS3 compliant for environmental standards.

82111-LF3 Applications

  • Used in analog modem isolation circuits.
  • Suitable for pulse transformer applications.
  • Ideal for 1:1 signal coupling designs.
  • Common in telecom interface modules.

82111-LF3 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the turns ratio of the Würth Elektronik 750082111 pulse transformer?

The turns ratio is 1:1.

How is the Würth Elektronik 750082111 pulse transformer mounted?

It is a through-hole mounted component.

What are the dimensions of the Würth Elektronik 750082111 pulse transformer?

The dimensions are 0.945" L x 0.906" W (24.00mm x 23.00mm).

What is the maximum seated height for the Würth Elektronik 750082111 pulse transformer?

The maximum seated height is 0.490" (12.45mm).

What is the operating temperature range for the Würth Elektronik 750082111 pulse transformer?

It operates from -40°C to 85°C.
