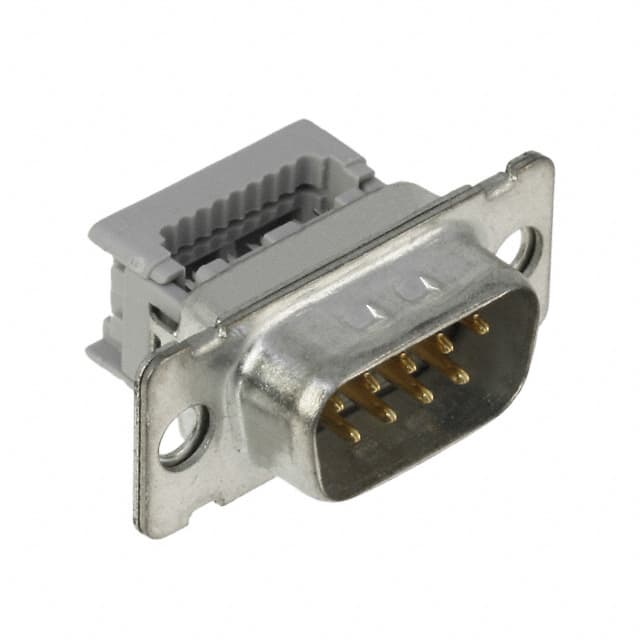

The 3M 8209-6009 is a 9-position D-Sub plug connector from the 8200 Series, featuring male pins and a panel mount design. It uses IDC termination for ribbon cable, accommodating 26 and 28 AWG solid or stranded wire. The connector has a tin-plated steel shell with grounding indents and a feed-through flange feature.
Electrical specifications include a current rating of 1A, insulation resistance greater than 1 × 10^9 Ω at 500 V DC, and a withstanding voltage of 1000 V RMS at sea level. The operating temperature range is -55°C to +105°C. The insulation is glass-filled polyester (PBT) with a UL94 V-0 flammability rating.
Contact material is copper alloy with a gold wiping area of 30 μ” (0.76 μm) over a nickel underplating of 50 μ” (1.27 μm). The connector is RoHS3 compliant and carries UL File No. E68080.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.14 | $8.14 |
| 10+ | $6.92 | $6.92 |
| 20+ | $6.49 | $6.49 |
| 50+ | $6.18 | $6.18 |
| 100+ | $5.87 | $5.87 |
| 200+ | $5.43 | $5.43 |
| 500+ | $5.21 | $5.21 |
| 1,000+ | $4.75 | $4.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 1A.
The operating temperature range is -55°C to +105°C.
It uses IDC (Insulation Displacement Connection) for ribbon cable.
The connector is designed for panel mount.
The insulation material has a UL94 V-0 flammability rating.
