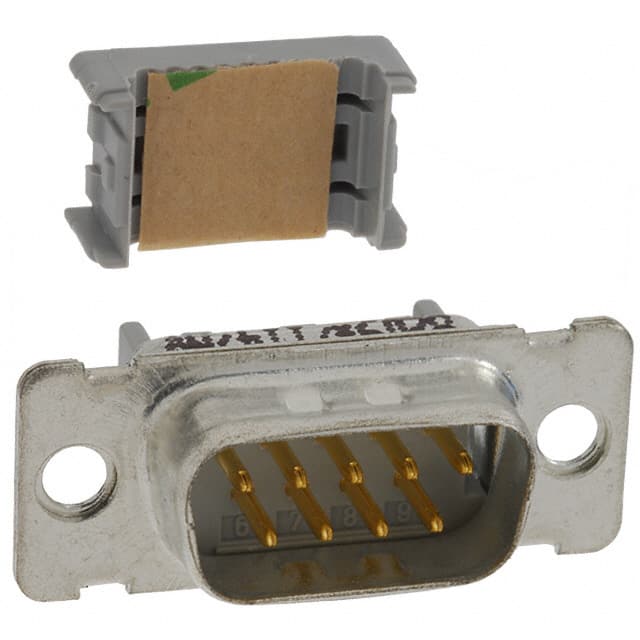

The 3M 8209-6000 is a D-Sub plug connector from the 8200 Series, designed for panel mount applications with IDC termination for ribbon cables. It features 9 positions in 2 rows with a shell size of DE (E). The connector is equipped with gold-plated copper alloy contacts (30 µin gold over 50 µin nickel) for reliable signal transmission. The steel shell is tin-plated, and the insulator is made of glass-filled polyester (PBT) with a UL94 V-0 flammability rating. Electrical ratings include a current rating of 1A, insulation resistance greater than 1×10^9 Ω at 500 V DC, and withstanding voltage of 1000 V RMS at sea level. The operating temperature range is -55°C to +105°C. The connector accommodates 26 and 28 AWG solid or stranded wires. Features include feed through and grounding indents for EMI/ESD protection. The strain relief is made of stainless steel (ordered separately). This connector is suitable for various industrial and commercial applications requiring reliable D-Sub connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.12 | $8.12 |
| 10+ | $6.90 | $6.90 |
| 20+ | $6.47 | $6.47 |
| 50+ | $6.16 | $6.16 |
| 100+ | $5.86 | $5.86 |
| 200+ | $5.43 | $5.43 |
| 500+ | $5.23 | $5.23 |
| 1,000+ | $4.98 | $4.98 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
9 positions.
1A.
1000V RMS at sea level.
Panel Mount.
-55°C to +105°C.
Gold, 30.0µin (0.76µm).
26 and 28 AWG solid or stranded.
