| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Tape & Reel | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

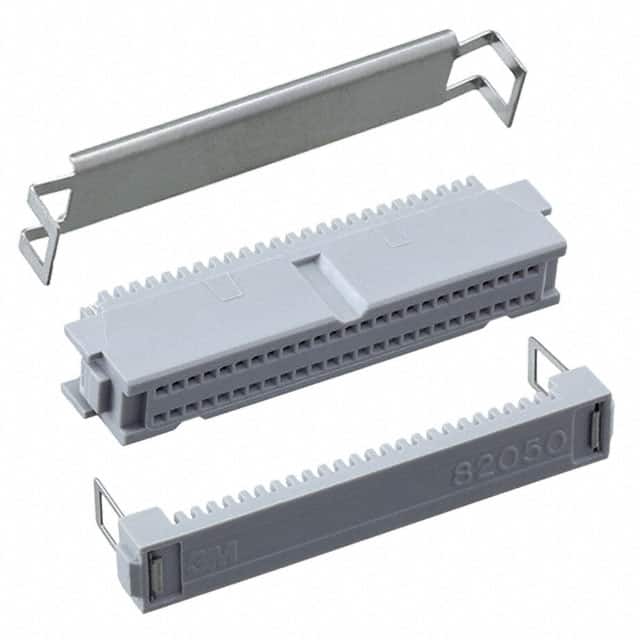

The 3M 82050-6006 is a 50 position IDC receptacle connector designed for use with 30 AWG ribbon cable. It features a 1.27mm (0.050") pitch and 0.100" (2.54mm) row spacing, with two rows of female socket contacts. The contacts are gold plated with a thickness of 30.0µin (0.76µm).
This connector uses IDC (Insulation Displacement Contact) termination for quick and reliable cable assembly without stripping. It is a free hanging (in-line) mount type, making it suitable for cable-to-board or cable-to-cable connections where a panel mount is not required.
The connector includes feed through and strain relief features, and comes in a gray color. It is commonly used in internal wiring applications requiring a compact, high-density interconnect solution.
The connector type is a receptacle.
It has 50 positions.
The pitch is 1.27mm (0.050").
The mounting type is free hanging (in-line).
It is designed for 30 AWG ribbon cable.
The contact finish is gold with a thickness of 30.0µin (0.76µm).
It uses IDC (Insulation Displacement Contact) termination.
