Mfr Part #:

820-AG11D

Name: 820-AG11D
Brand: TE Connectivity
SKU: 820-AG11D

Mfr Name: TE Connectivity

Description:

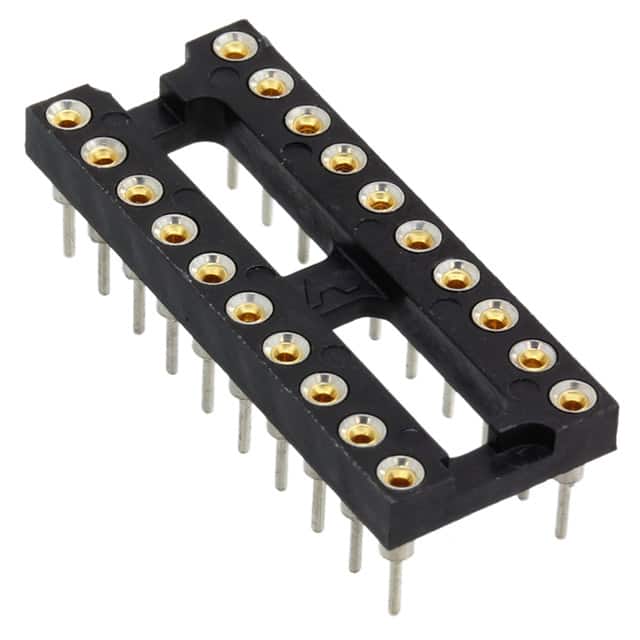

CONN IC DIP SOCKET 20POS GOLD

Stock on Request

820-AG11D Description

Short technical summary and product information.

CONN IC DIP SOCKET 20POS GOLD

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

820-AG12D

TE Connectivity

CONN IC DIP SOCKET 20POS GOLD

Category	IC Sockets
Manufacturer Name	TE Connectivity
Contact Finish	Tin-Lead
Contact Finish Thickness	25.0µin (0.63µm)
Contact Material	Copper Alloy
Features	Open Frame
Housing Material	Polyester
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	20 (2 x 10)
Operating Temperature	-55°C ~ 105°C
Pitch	0.100" (2.54mm)
Termination	Solder
Type	DIP, 0.3" (7.62mm) Row Spacing
