| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
295 pcs
|
295 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Body Material | |
| Center Contact Material | |
| Impedance | |
| Insulator Material | |
| Mating Cycles | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Tape & Reel | |
| Weight |

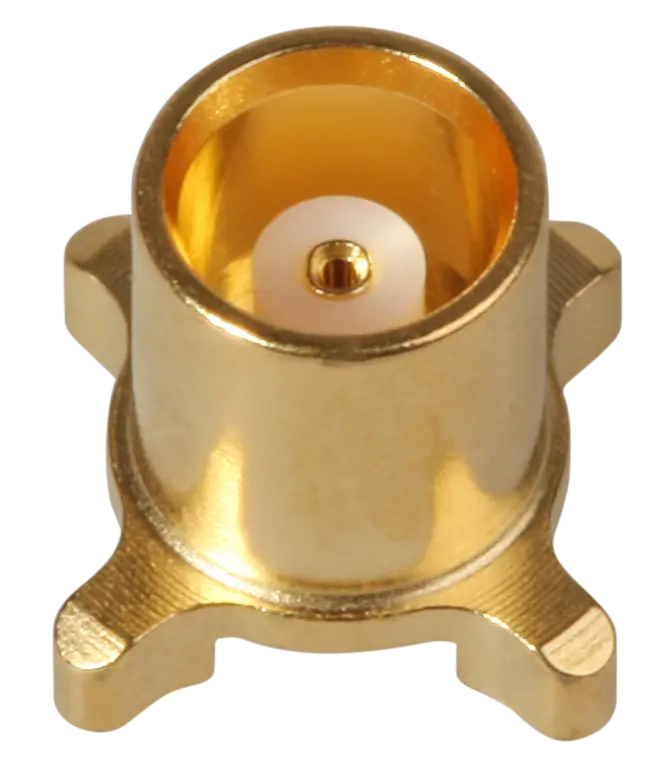

This Huber+Suhner MCX coaxial connector, part number 82_MCX-S50-0-29/111_NM, offers a 50 Ohm impedance and a 6 GHz interface frequency. It features a straight PCB jack design suitable for surface mounting applications.
The connector is constructed with a Copper Beryllium Alloy center contact, Brass body and outer conductor, and PFA/PTFE insulator. It has a weight of 0.0004 kg and supports 500 mating cycles. The operating temperature range is from -55 °C to 155 °C.
Key specifications include a height above PCB of 6 mm and a height of stand-off of 0.8 mm. The connector complies with IEC 60169-36 and CECC 22220 standards. It is supplied in Tape and Reel packaging.
This component is suitable for various applications within communication, industry, and transportation markets where reliable RF connections are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ω
6 GHz
-55 °C to 155 °C
Surface mount
500
Copper Beryllium Alloy with Gold Plating (Nickel underplated)
6 mm
