816-AG11D-ES 16 position DIP IC socket from TE Connectivity with through hole mounting, 2.54mm pitch, and open frame design. Contact finish is tin-lead.
Mfr Part #:

816-AG11D-ES

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
16 position DIP IC socket from TE Connectivity with through hole mounting, 2.54mm pitch, and open frame design. Contact finish is tin-lead.
✓ Total Stock: 30 pcs

816-AG11D-ES Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
30 pcs
On Request
30 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

816-AG11D-ES Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Contact Finish
Contact Finish Thickness
Contact Material
Features
Housing Material
Industrial Grade
Lead Spacing
Lead Style
Medical Grade
Military Grade
Mounting Type
Number of Positions or Pins (Grid)
Operating Temperature
Pitch
Termination
Termination Style
Type
View Similar Products (0)

816-AG11D-ES Description

Short technical summary and product information.

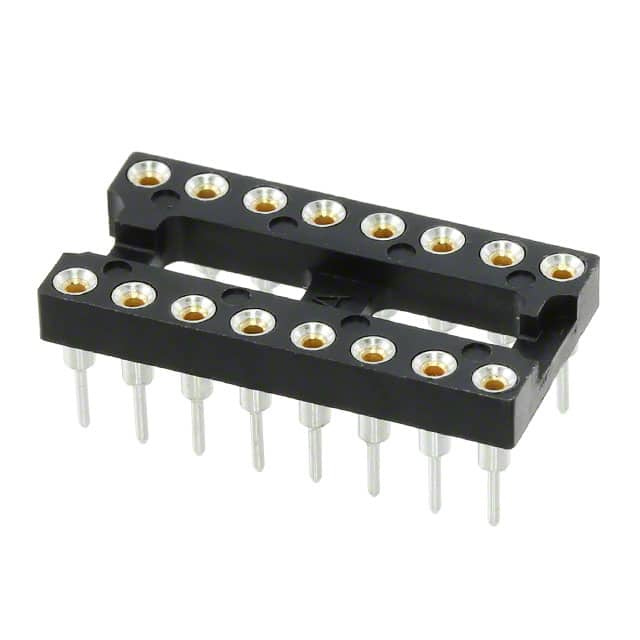

The TE Connectivity 816-AG11D-ES is a 16-position DIP IC socket designed for through hole mounting. It features a 0.3 inch (7.62mm) row spacing and a 2.54mm pitch, making it suitable for standard 16-pin DIP ICs. The socket has an open frame construction, allowing for better airflow and easier inspection of solder joints. The contacts are made of copper alloy with a tin-lead finish providing reliable electrical connections. The housing is made of polyester, offering good insulation and durability. The operating temperature range is -55°C to 105°C, suitable for a wide range of applications.

816-AG11D-ES Quick Information

Product Type: IC Socket
Series: 800
Canonical Name: TE Connectivity 816-AG11D-ES 16 Position DIP Socket (0.3" Row Spacing)
Subcategory: DIP Socket

816-AG11D-ES Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

816-AG11D-ES Features

  • 16 positions with 0.3 inch row spacing.
  • Through hole mounting with 2.54mm pitch.
  • Open frame design for improved airflow.
  • Tin-lead contact finish with 25µin thickness.
  • Operating temperature range from -55°C to 105°C.

816-AG11D-ES Applications

  • Ideal for mounting 16-pin DIP ICs on PCBs.
  • Suitable for prototyping and production applications.
  • Used in industrial and consumer electronics.

816-AG11D-ES FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the 816-AG11D-ES have?

It has 16 positions (2 x 8 grid).

What is the pitch of this socket?

The pitch is 2.54mm (0.100").

What is the mounting type?

Through hole mounting with solder termination.

What is the contact finish?

The contact finish is tin-lead with a thickness of 25.0µin (0.63µm).

What is the operating temperature range?

-55°C to 105°C.

What materials are used for the contacts and housing?

Contacts are copper alloy, housing is polyester.
