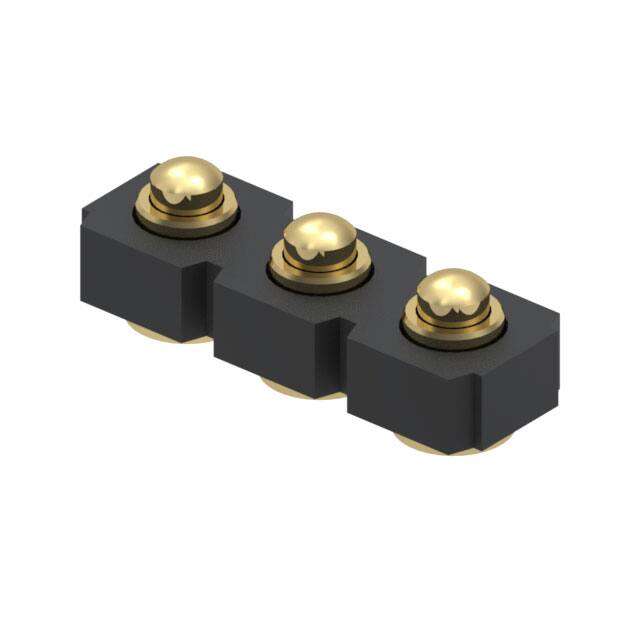

815-22-003-30-001101 3 position spring loaded piston connector from Mill-Max. Surface mount with 2.54mm pitch and gold contact finish.
Mfr Part #:

815-22-003-30-001101

Available from 1 distributors
Mfr Name: Mill-Max Manufacturing
Mill-Max Manufacturing
3 position spring loaded piston connector from Mill-Max. Surface mount with 2.54mm pitch and gold contact finish.
✓ Total Stock: 92 pcs
$ Price Range: $2.00 - $3.86

815-22-003-30-001101 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
92 pcs
On Request
92 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

815-22-003-30-001101 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Lead Spacing
Material
Mounting Type
Number of Contacts
Number of Rows
Pitch
Tape & Reel
View Similar Products (0)

815-22-003-30-001101 Description

Short technical summary and product information.

This connector is a 3-position, single row spring loaded piston connector from Mill-Max Manufacturing. It features surface mount termination and a 2.54mm (0.100 inch) pitch. The contacts are made of copper alloy with a gold finish of 20.0 microinches (0.51 micrometers). The connector is designed for applications requiring reliable spring-loaded contact in a compact SMD package. The single row configuration and 2.54mm pitch align with standard grid spacing, making it suitable for various board-to-board and test applications.

815-22-003-30-001101 Quick Information

Product Type: Spring Loaded Piston Connector
Canonical Name: 3 Position Spring Loaded Piston Connector, Surface Mount, 2.54mm Pitch
Subcategory: Rectangular Connectors - Spring Loaded

815-22-003-30-001101 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

815-22-003-30-001101 Estimated Pricing

Qty Low High
1+ $3.86 $3.86
10+ $3.51 $3.51
25+ $3.33 $3.33
68+ $3.09 $3.09
272+ $2.70 $2.70
544+ $2.62 $2.62
1,020+ $2.25 $2.25
2,516+ $2.11 $2.11
5,032+ $2.00 $2.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

815-22-003-30-001101 Features

  • Spring loaded piston contacts for reliable connection.
  • Surface mount design for automated assembly.
  • 2.54mm pitch for standard spacing.
  • Gold plated contacts for corrosion resistance.
  • Single row, 3 positions.

815-22-003-30-001101 Applications

  • Ideal for board-to-board stacking applications.
  • Used in test and measurement equipment.
  • Suitable for high-vibration environments.
  • Common in compact electronic devices.

815-22-003-30-001101 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this connector have?

3 positions.

What is the pitch of this connector?

2.54mm (0.100 inch).

What is the mounting type?

Surface mount.

What is the contact material and finish?

Copper alloy contacts with gold finish, 20.0 microinches (0.51 micrometers) thick.

Is this connector RoHS compliant?

RoHS3 compliant status is listed but unverified.

What is the moisture sensitivity level (MSL)?

MSL 1 (Unlimited).

How many rows does the connector have?

1 row.
