Mfr Part #:

814-AG11D-ESL-LF

Name: 814-AG11D-ESL-LF
Brand: TE Connectivity
SKU: 814-AG11D-ESL-LF

Mfr Name: TE Connectivity

Description:

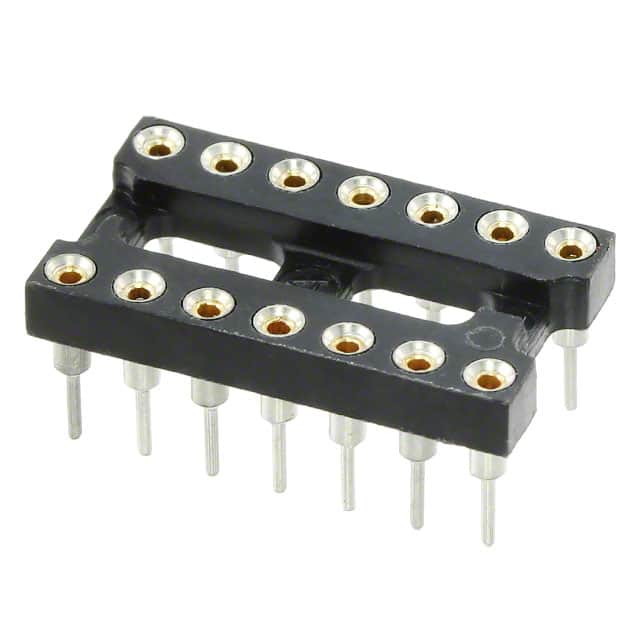

CONN IC DIP SOCKET 14POS GOLD

Stock on Request

814-AG11D-ESL-LF Description

Short technical summary and product information.

CONN IC DIP SOCKET 14POS GOLD

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

2-1571552-3

TE Connectivity AMP Connectors

814-AG11D-ESL-LF=800 DIP GF/SN

Category	IC Sockets
Manufacturer Name	TE Connectivity
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Beryllium Copper
Features	Open Frame
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	14 (2 x 7)
Operating Temperature	-55°C ~ 105°C
Pitch	0.100" (2.54mm)
Termination	Solder
Type	DIP, 0.3" (7.62mm) Row Spacing
