| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
280 pcs
|
280 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accepts Pin Diameter | |
| China RoHS | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| ELV | |
| Halogen Free | |
| Length | |
| Mounting Hole Diameter | |
| Mounting Type | |
| Pin Hole Diameter | |
| Tail Type | |
| Tape & Reel | |
| Termination |

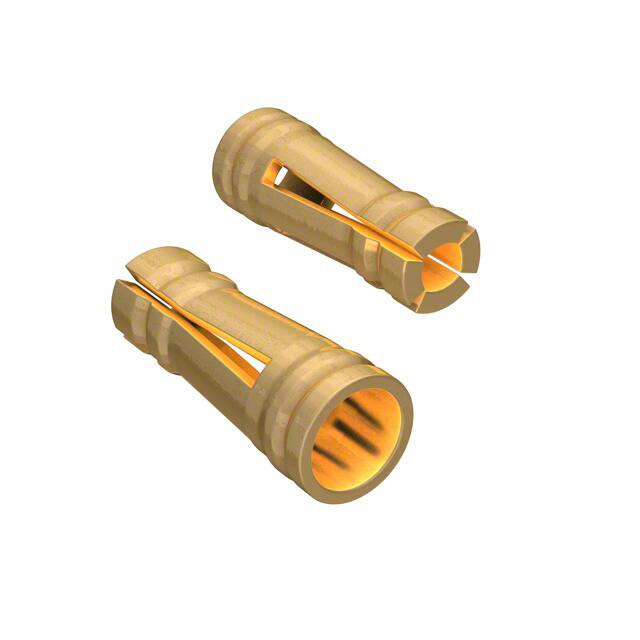

The TE Connectivity 8134-HC-6P2 is a Holtite series press-fit pin receptacle designed for PCB mounting. It accepts pin diameters from 0.020" to 0.030" (0.51mm to 0.76mm). The contact is made of beryllium copper with a gold plating thickness of 24.8µin (0.63µm), ensuring reliable electrical performance and corrosion resistance. The termination style is press-fit, with a pin hole diameter of 0.038" (0.97mm) and a mounting hole diameter of 0.058" (1.47mm). The overall length is 3.45mm (0.136") with no tail. This component is ROHS compliant with exemptions, REACH compliant with lead declared above threshold, and low halogen content. It is suitable for high-reliability interconnect applications requiring a durable press-fit interface.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.96 | $0.96 |
| 10+ | $0.83 | $0.83 |
| 25+ | $0.79 | $0.79 |
| 250+ | $0.73 | $0.73 |
| 500+ | $0.68 | $0.68 |
| 1,000+ | $0.64 | $0.64 |
| 2,500+ | $0.61 | $0.61 |
| 5,000+ | $0.61 | $0.61 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It accepts pin diameters from 0.020" to 0.030" (0.51mm to 0.76mm).
It uses a press-fit termination, no tail.
Contact material is beryllium copper with a gold finish of 24.8µin (0.63µm).
The pin hole diameter is 0.038" (0.97mm) and the mounting hole diameter is 0.058" (1.47mm).
Yes, it is RoHS compliant with exemptions (EU RoHS Directive 2011/65/EU, exemption 6(c) for lead in copper alloy).
The overall length is 3.45mm (0.136").
