| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Marking | |
| Actuator Type | |
| Circuit | |
| Color | |
| Current Rating (Amps) | |
| Features | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Switch Function | |
| Termination Style | |
| Type | |
| Voltage Rating |

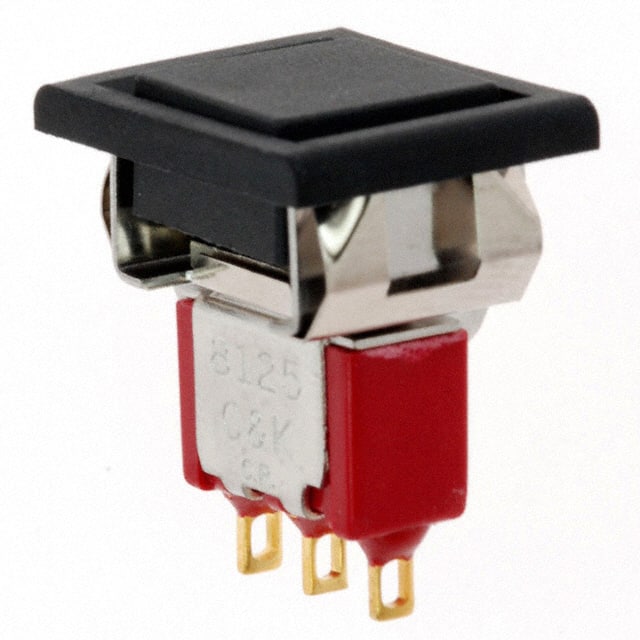

This C&K Components pushbutton switch, part number 8125J83ZBE22, is designed for various applications requiring reliable switching. It features an SPDT (Single Pole Double Throw) circuit configuration and is rated for a voltage of 20V and a current of 0.4VA (AC/DC).
The switch offers tactile feedback, providing a clear indication of actuation. It is designed for panel mounting with a snap-in mechanism and has a solder lug termination style for secure connections. The operating temperature range is from -30°C to 75°C, making it suitable for a variety of environmental conditions.
Additional features include a flush, square button actuator with no marking. The panel cutout dimensions are rectangular, measuring 15.24mm x 12.70mm. The switch is RoHS3 compliant, has an MSL of 1, and is REACH unaffected, though these compliance statuses are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage of the 8125J83ZBE22 switch is 20 V.
The 8125J83ZBE22 has an SPDT circuit configuration.
The current rating is 0.4VA (AC/DC).
It features panel mount and snap-in mounting styles.
The actuator type is square, button, flush.
The panel cutout dimensions are rectangular, 15.24mm x 12.70mm.
RoHS compliance status is unverified.
