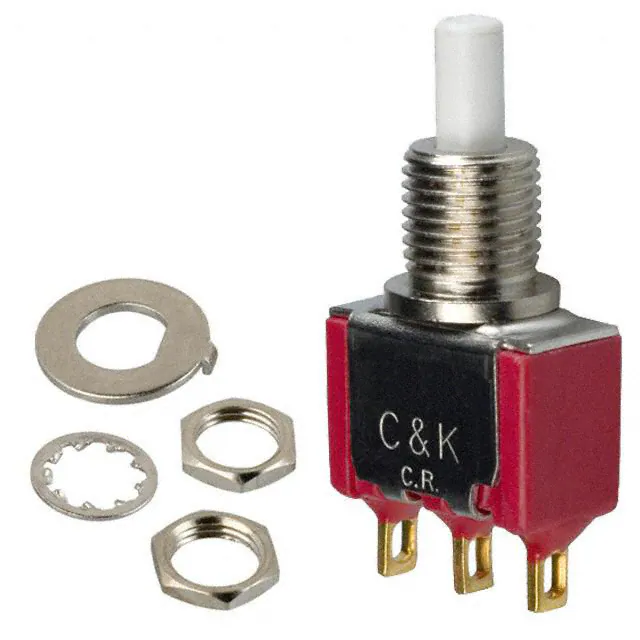

8121SHZGE The C&K 8121SHZGE is a pushbutton switch with an SPDT circuit, rated for 1A at 120V AC. It features a panel mount, rear mounting type.
Mfr Part #:

8121SHZGE

Available from 2 distributors
Mfr Name: C&K Components
C&K Components
The C&K 8121SHZGE is a pushbutton switch with an SPDT circuit, rated for 1A at 120V AC. It features a panel mount, rear mounting type.
✓ Total Stock: 3,364 pcs
$ Price Range: $0.75

8121SHZGE Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
1,682 pcs
On Request
1682 pcs On Request 1 On Request On Request On Request On Request On Request
RAD ✓
Non-Authorised Inventory information
1,682 pcs
On Request
1682 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

8121SHZGE Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Marking
Actuator Type
Circuit
Color
Current Rating (Amps)
Features
Lead Style
Mounting Type
Operating Temperature
Panel Cutout Dimensions
Switch Function
Termination Style
Type
Voltage Rating
View Similar Products (0)

8121SHZGE Description

Short technical summary and product information.

This C&K 8121SHZGE is a standard pushbutton switch featuring an SPDT circuit configuration. It is designed for panel mounting with rear access and utilizes a solder lug termination style. The switch is rated for a current of 1A (AC/DC) and can handle up to 120V AC or 28V DC. It has a tactile feedback feature and a round plunger actuator without any marking.



The operating temperature range for this component is -30°C to 75°C. The panel cutout required is circular with a diameter of 6.35mm. The switch has an electrical life of 60,000 cycles. It is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited.



This component is suitable for applications requiring a reliable momentary switch with specific mounting and electrical characteristics. Its robust construction and defined operating parameters make it a practical choice for various electronic designs.

8121SHZGE Quick Information

Product Type: Pushbutton Switch
Series: 8020
Canonical Name: C&K 8121SHZGE Pushbutton Switch
Subcategory: Pushbutton

8121SHZGE Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

8121SHZGE Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

8121SHZGE Features

  • SPDT circuit configuration.
  • Rated for 1A current.
  • 120V AC voltage rating.
  • Panel mount, rear mounting.
  • Tactile feedback feature.

8121SHZGE Applications

  • Suitable for panel-mounted control switches.
  • Used in industrial machinery for circuit switching.
  • Ideal for consumer electronic device controls.
  • Applicable in power management and communication systems.

8121SHZGE FAQs

7 frequently asked questions generated from this part’s specifications.
What is the circuit type of the C&K 8121SHZGE?

The C&K 8121SHZGE features an SPDT circuit.

What is the current rating for the 8121SHZGE pushbutton switch?

The current rating is 1A (AC/DC).

What is the AC voltage rating of the 8121SHZGE?

The AC voltage rating is 120 V.

What is the operating temperature range for this switch?

The operating temperature range is -30°C to 75°C.

How is the C&K 8121SHZGE mounted?

It is a panel mount switch with rear mounting.

What is the RoHS status of the 8121SHZGE?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this component?

The MSL is 1 Unlimited.
