8121SD9AV2GE The C&K Components 8121SD9AV2GE is a pushbutton switch with an On-Mom function. It features a SPDT circuit and is rated for 1A at 120V.
Mfr Part #:

8121SD9AV2GE

Available from 2 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components 8121SD9AV2GE is a pushbutton switch with an On-Mom function. It features a SPDT circuit and is rated for 1A at 120V.
✓ Total Stock: 173 pcs
$ Price Range: $0.75

8121SD9AV2GE Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
158 pcs
On Request
158 pcs On Request 1 On Request On Request On Request On Request On Request
AA2DE ✓
Non-Authorised Inventory information
15 pcs
On Request
15 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

8121SD9AV2GE Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Marking
Actuator Type
Circuit
Color
Current Rating (Amps)
Features
Lead Style
Mounting Type
Operating Temperature
Switch Function
Termination Style
Type
Voltage Rating
View Similar Products (0)

8121SD9AV2GE Description

Short technical summary and product information.

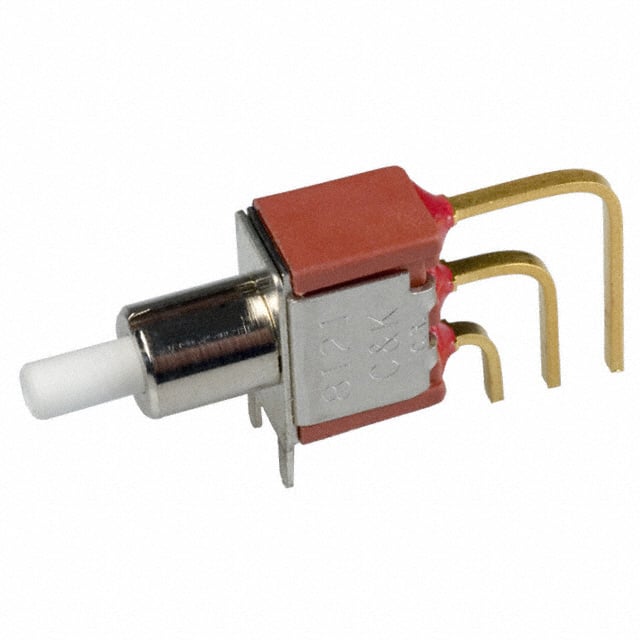

This C&K Components 8121SD9AV2GE is a standard pushbutton switch designed for through-hole mounting at a right angle. It features a tactile feedback mechanism and a round plunger actuator without marking.



The switch operates on an On-Mom function with a SPDT circuit configuration. It is rated to handle 1A of current (AC/DC) and a voltage of 120V. The operating temperature range for this component is -30°C to 75°C.



Termination is achieved via PC pins, making it suitable for direct board mounting. The white actuator provides a clear visual indicator. This switch is compliant with RoHS3 standards and has an MSL of 1 Unlimited.

8121SD9AV2GE Quick Information

Product Type: Pushbutton Switch
Canonical Name: C&K Components 8121SD9AV2GE Pushbutton Switch
Subcategory: Pushbutton Switch

8121SD9AV2GE Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

8121SD9AV2GE Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

8121SD9AV2GE Features

  • SPDT circuit for versatile switching.
  • Rated for 1A current and 120V.
  • Features tactile feedback for user confirmation.
  • Through-hole, right-angle mounting.
  • Operates between -30°C and 75°C.

8121SD9AV2GE Applications

  • Ideal for control panel interfaces.
  • Suitable for electronic equipment controls.
  • Used in industrial automation systems.
  • Applicable in consumer electronics devices.

8121SD9AV2GE FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating of the 8121SD9AV2GE pushbutton switch?

The 8121SD9AV2GE pushbutton switch has a current rating of 1A (AC/DC).

What is the voltage rating for the 8121SD9AV2GE switch?

The voltage rating for the 8121SD9AV2GE switch is 120V.

What is the operating temperature range of the 8121SD9AV2GE switch?

The 8121SD9AV2GE switch operates within a temperature range of -30°C to 75°C.

What type of circuit does the 8121SD9AV2GE pushbutton switch use?

The 8121SD9AV2GE pushbutton switch uses an SPDT (Single Pole Double Throw) circuit.

Does the 8121SD9AV2GE switch offer tactile feedback?

Yes, the 8121SD9AV2GE switch features tactile feedback.

How is the 8121SD9AV2GE pushbutton switch mounted?

The 8121SD9AV2GE pushbutton switch is mounted through hole, at a right angle, and vertically.
