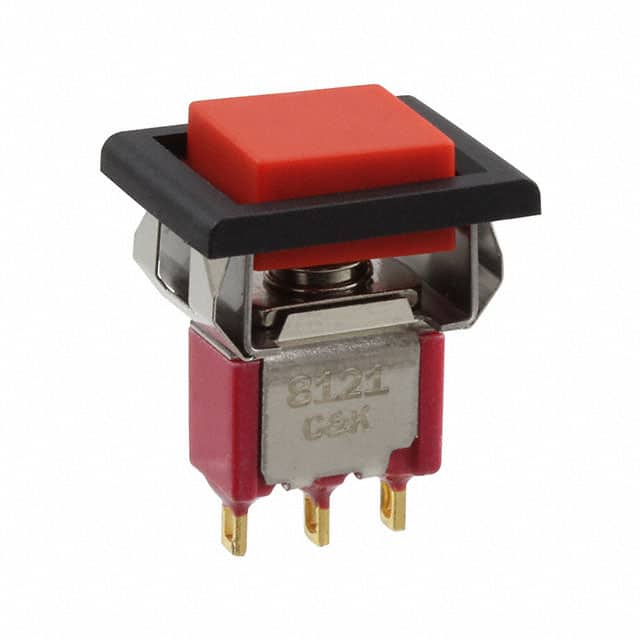

8121J81ZGE32 The C&K Components 8121J81ZGE32 is a pushbutton switch with a Single Pole Double Throw (SPDT) circuit. It is rated for 1A and 120V.
Mfr Part #:

8121J81ZGE32

Available from 1 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components 8121J81ZGE32 is a pushbutton switch with a Single Pole Double Throw (SPDT) circuit. It is rated for 1A and 120V.
✓ Total Stock: 6 pcs
$ Price Range: $0.75

8121J81ZGE32 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
6 pcs
On Request
6 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

8121J81ZGE32 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Marking
Actuator Type
Circuit
Color
Current Rating (Amps)
Features
Lead Style
Mounting Type
Operating Temperature
Panel Cutout Dimensions
Switch Function
Termination Style
Type
Voltage Rating
View Similar Products (0)

8121J81ZGE32 Description

Short technical summary and product information.

This C&K Components pushbutton switch, part number 8121J81ZGE32, features a Single Pole Double Throw (SPDT) circuit configuration. It is designed for panel mounting with a snap-in mechanism and has a solder lug termination style. The switch operates within a temperature range of -30°C to 75°C and handles a current rating of 1A (AC/DC) and a voltage rating of 120V.



Key features include tactile feedback and a red actuator button without any marking. The panel cutout dimensions are rectangular, measuring 15.24mm x 12.70mm. This switch is suitable for applications requiring a reliable on-momentary function.



Environmental compliance includes RoHS3 compliance and Moisture Sensitivity Level 1 (MSL 1). The REACH status is unaffected. The switch is designed for straightforward integration into various electronic systems.

8121J81ZGE32 Quick Information

Product Type: Pushbutton Switch
Canonical Name: C&K Components 8121J81ZGE32 Pushbutton Switch
Subcategory: Pushbutton Switch

8121J81ZGE32 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

8121J81ZGE32 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

8121J81ZGE32 Features

  • SPDT circuit for versatile switching.
  • Rated for 1A current and 120V.
  • Panel mount with snap-in design.
  • Tactile feedback for user confirmation.
  • Solder lug termination for secure connections.

8121J81ZGE32 Applications

  • Ideal for control panel interfaces.
  • Suitable for industrial equipment.
  • Used in electronic device controls.
  • Applicable for test and measurement gear.

8121J81ZGE32 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for this switch?

-30°C to 75°C

What is the current and voltage rating of the 8121J81ZGE32 switch?

The switch is rated for 1A (AC/DC) and 120V.

What type of circuit does this pushbutton switch have?

This switch has a Single Pole Double Throw (SPDT) circuit.

How is this switch mounted?

It is designed for panel mounting with a snap-in mechanism.

What is the termination style for this switch?

The termination style is solder lug.

Does this switch have tactile feedback?

Yes, it features tactile feedback.

What is the RoHS status of the 8121J81ZGE32?

The RoHS status is RoHS3 Compliant.
