| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
65 pcs
|
65 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Resistance | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Head Diameter | |
| Insulation Resistance | |
| Insulator Material | |
| Material | |
| Mounting Type | |
| Number of Contacts | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| Prop 65 | |
| Rated Voltage | |
| Tape & Reel |

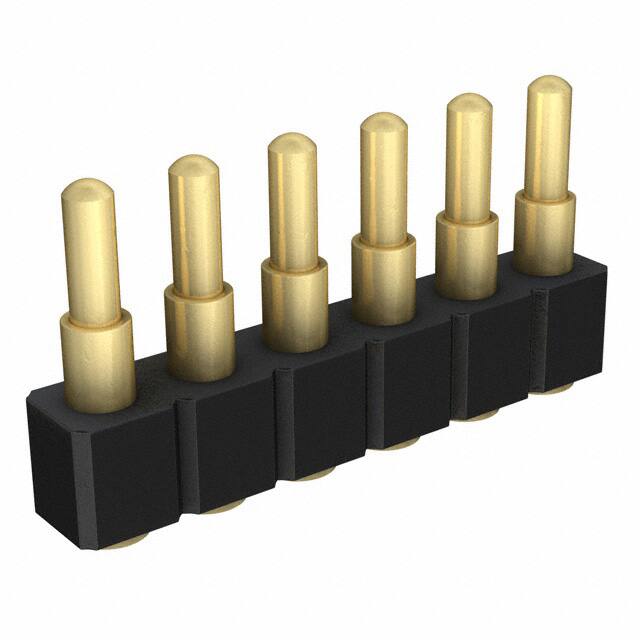

The Mill-Max 812-22-006-30-003101 is a 6-position single-row spring-loaded connector (pogo pin header) featuring a 2.54mm (0.100") pitch. It is designed for surface mount (SMT) assembly and comes with gold-plated contacts (20µin on body/plunger, 10µin on spring) for reliable electrical performance. The insulator is made of Nylon 4/6, and the contacts are copper alloy.
Electrical specifications include a current rating of 6.5A, contact resistance of 20mΩ maximum, insulation resistance of 10,000MΩ minimum, and a rated voltage of 100 VRMS/150 VDC with dielectric withstanding voltage of 1,000 VRMS. The operating temperature range is -55°C to +125°C.
Mechanically, the connector offers a mechanical life of 100,000 to 1,000,000 cycles at mid-stroke, and withstands shock (50g) and vibration (10-2000Hz, 15G) without electrical discontinuity exceeding 1µs. The above board height is 8.001mm, head diameter is 1.067mm, and stroke is 1.397mm. The SMT pad size is 0.0820 inches.
This connector is packaged in box or tube and is compliant with RoHS, REACH, and MSL Level 1 (unlimited). It is suitable for applications requiring reliable, high-cycle interconnections in harsh environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $15.79 | $15.79 |
| 10+ | $14.05 | $14.05 |
| 34+ | $11.93 | $11.93 |
| 272+ | $11.22 | $11.22 |
| 510+ | $10.57 | $10.57 |
| 1,020+ | $9.79 | $9.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions.
2.54mm (0.100").
6.5A.
100 VRMS/150 VDC.
Surface Mount (SMT).
-55°C to +125°C.
Gold, 20µin on body/plunger and 10µin on spring.
