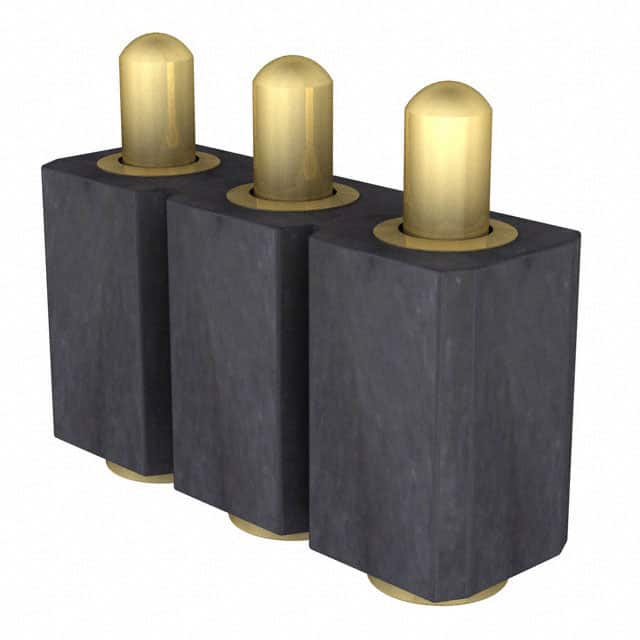

The Preci-Dip 811-SS-003-30-002191 is a single-row spring-loaded piston connector featuring 3 contacts on a 2.54mm pitch. The connector uses a hollow piston design for a low profile, with a maximum stroke of 1.4mm. Initial contact force is 0.25N, rising to 0.6N at half stroke, ensuring reliable electrical connection in applications subject to vibration or thermal expansion.
The insulator is molded from black glass-filled polyester PCT-GF30-FR with a UL94 V-0 flammability rating. The piston and barrel are brass with 0.5μm gold plating, and the spring is stainless steel. The connector is rated for a maximum operating current of 3.5A and has a nominal contact resistance of 15 mΩ. Mechanical life is 100,000 cycles.
This connector is supplied in tape and reel packaging with a pick and place cap, suitable for automated assembly. The surface mount terminations have a maximum coplanarity of 0.1mm. The initial height is 5mm with a plastic body height of 2.95mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.89 | $4.89 |
| 10+ | $4.45 | $4.45 |
| 25+ | $4.21 | $4.21 |
| 100+ | $3.92 | $3.92 |
| 250+ | $2.81 | $2.81 |
| 600+ | $2.72 | $2.72 |
| 2,400+ | $2.40 | $2.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 3 contacts in a single row.
The pitch is 2.54mm (0.100 inches).
The maximum operating current is 3.5A.
This connector is surface mount (SMD).
The contacts have a 0.5μm gold plating.
The mechanical life is 100,000 cycles.
Yes, it is RoHS3 compliant as stated in the datasheet.
