| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
407 pcs
|
407 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Failure Rate | |
| Material | |
| Mounting Type | |
| Number of Contacts | |
| Number of Rows | |
| Pitch | |
| Termination Style |

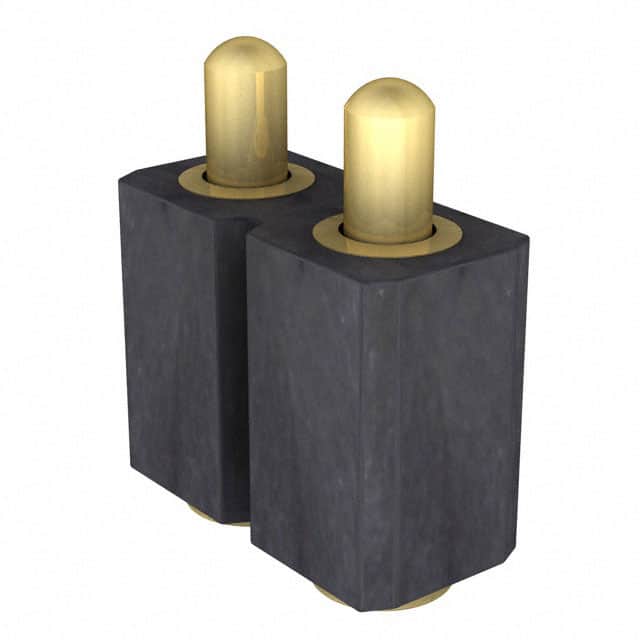

The Preci-Dip 811-SS-002-30-026101 is a spring piston connector with 2 positions arranged in a single row. The connector uses a 2.54mm (0.100") pitch, making it suitable for standard spacing requirements. Contacts are made of brass with a gold finish of 19.7µin (0.50µm) thickness, ensuring reliable conductivity and corrosion resistance.
The connector is designed for surface mount termination, allowing for efficient assembly onto printed circuit boards. It is part of the Preci-Dip 811 series and is rated as active in product status. The housing material is not specified, but the connector is compact for space-constrained designs.
This connector is ROHS3 compliant and REACH unaffected, with an MSL rating of Level 1 (unlimited). ECCN is EAR99 and HTSUS is 8536.69.4040. It is suitable for a variety of spring-loaded interconnect applications where reliable contact and easy assembly are required.
| Qty | Low | High |
|---|---|---|
| 500+ | $2.13 | $2.13 |
| 1,000+ | $2.09 | $2.09 |
| 2,500+ | $2.00 | $2.00 |
| 5,000+ | $1.96 | $1.96 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 positions.
2.54mm (0.100").
Surface mount.
Gold with 19.7µin (0.50µm) thickness.
Yes, ROHS3 compliant.
MSL Level 1 (Unlimited).
Brass.
