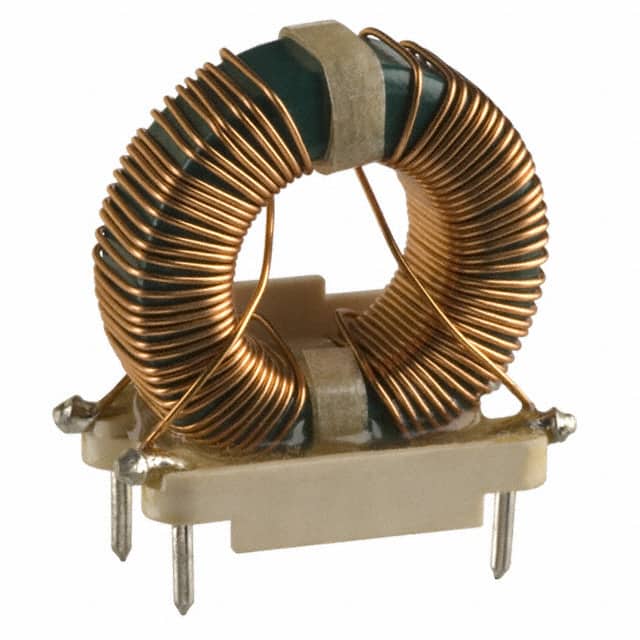

8105-RC Bourns 8105-RC is a 7 mH common mode choke rated for 2.8A with a maximum DCR of 0.12Ω. It features a through hole vertical 4 PC pin package and operates from -55°C to 105°C.
Mfr Part #:

8105-RC

Available from 1 distributors
Mfr Name: Bourns
Bourns
Bourns 8105-RC is a 7 mH common mode choke rated for 2.8A with a maximum DCR of 0.12Ω. It features a through hole vertical 4 PC pin package and operates from -55°C to 105°C.
✓ Total Stock: 275 pcs
$ Price Range: $3.16

8105-RC Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
275 pcs
On Request
275 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

8105-RC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Current Rating (Max)
DC Resistance (DCR)
DC Resistance (DCR) (Max)
Height (Max)
Inductance @ Frequency
Mounting Type
Number of Lines
Operating Temperature
View Similar Products (0)

8105-RC Description

Short technical summary and product information.

The Bourns 8105-RC is a common mode choke from the 8100 series, designed for EMI suppression. It has a minimum inductance of 7 mH at 1 kHz and a maximum current rating of 2.8A, causing approximately 35°C temperature rise.



Electrical characteristics include a maximum DC resistance of 0.12Ω with mounting base (-RC) and 0.16Ω without (-1RC). Typical leakage inductance is 32 µH. Dielectric strength is 1500 Vrms.



The component is housed in a vertical through hole package with 4 PC pins. Dimensions: height 30.48mm max, width 15.39mm, depth 20.32mm, pin spacing 10.16mm. Operating temperature range -55°C to 105°C. The optional header is made of UL 94V-0 rated plastic.

8105-RC Quick Information

Product Type: Common Mode Choke
Series: 8100 Series
Canonical Name: Bourns 8105-RC Common Mode Choke, 7 mH, 2.8 A, Through Hole, Vertical 4 PC Pin
Subcategory: Through Hole Common Mode Choke

8105-RC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

8105-RC Estimated Pricing

Qty Low High
360+ $3.16 $3.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

8105-RC Features

  • Minimum inductance of 7 mH at 1 kHz.
  • Rated for 2.8A continuous current.
  • Maximum DCR of 0.12 ohms with header.
  • Dielectric strength of 1500 Vrms.
  • Operating temperature range -55°C to 105°C.

8105-RC Applications

  • Used in EMI filtering for power supplies.
  • Suitable for common mode noise suppression.
  • Ideal for signal line filtering in industrial equipment.

8105-RC FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the 8105-RC?

-55°C to 105°C.

Is the 8105-RC RoHS compliant?

Yes, the -RC suffix indicates RoHS3 compliance per the datasheet.

What is the package type of the 8105-RC?

Through hole, vertical 4 PC pin package.

What is the inductance of the 8105-RC?

7 mH minimum at 1 kHz.

What is the current rating of the 8105-RC?

2.8A maximum.

What is the DC resistance of the 8105-RC?

0.12Ω maximum with mounting base, 0.16Ω without.

What is the dielectric strength?

1500 Vrms.
