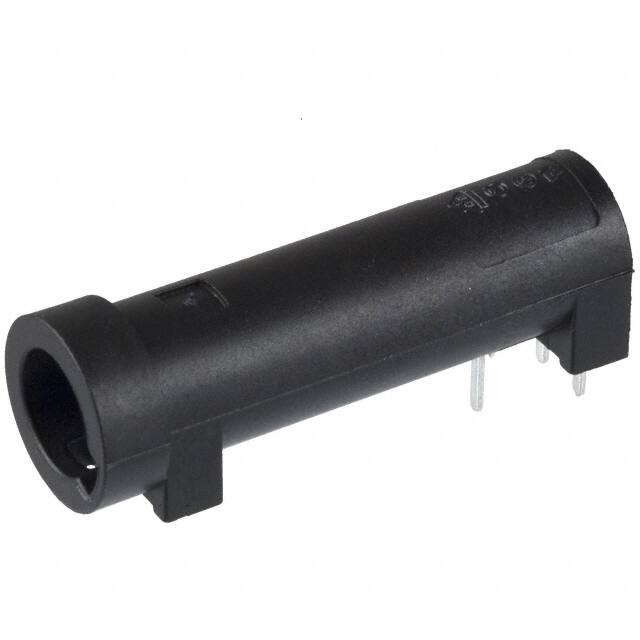

The Littelfuse 81000000005 is a through-hole cartridge fuse holder designed for printed circuit board mounting. Part of the 810 series, it accepts both 5mm x 20mm and 3AG (1/4" x 1-1/4") fuse sizes. The holder features a rugged black thermoplastic housing rated UL94 V-0, tinned copper alloy contacts, and a horizontal orientation with PC pin termination.
Electrically, the holder is rated for 250V with a current rating of 6.3A under VDE conditions and 16A under UL/CSA conditions. It has a VDE-rated power dissipation of 2.5W. The holder provides IP40 protection and meets protection class PC2 per IEC 60127-6. It operates over a temperature range of -25°C to 70°C.
Designed for secure and easy fuse replacement, the holder uses a bayonet-joint cap mechanism. The three solder pins are spaced at 5.08mm for common connection. Contact resistance is a maximum of 5 mΩ, with dielectric strength of 1.5 kV minimum and impulse voltage rating of 4 kV.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.40 | $5.40 |
| 5+ | $4.50 | $4.50 |
| 10+ | $4.04 | $4.04 |
| 50+ | $3.34 | $3.34 |
| 100+ | $2.91 | $2.91 |
| 300+ | $2.76 | $2.76 |
| 500+ | $2.62 | $2.62 |
| 1,000+ | $2.48 | $2.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6.3 A under VDE conditions and 16 A under UL/CSA conditions.
250 V.
5mm x 20mm and 3AG (1/4" x 1-1/4") fuses.
-25°C to 70°C.
IP40 per IEC 60529 and PC2 per IEC 60127-6.
The holder uses a bayonet-joint cap for secure insertion and removal.
RoHS3 compliant per database entry, though unverified.
