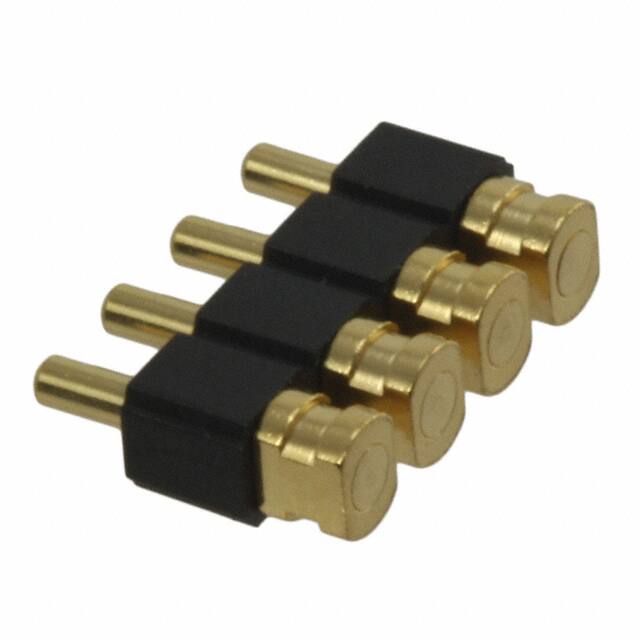

The Mill-Max 810-22-004-40-001101 is a spring-loaded piston connector designed for surface mount right angle mounting. It features 4 positions in a single row with a 2.54mm pitch. The connector uses a round plunger head type with a full stroke of 2.286mm and a mid stroke of 1.143mm. Contacts are made of copper alloy with a gold finish (20.0µin on body/plunger, 10µin on spring). The insulator is Nylon 4/6.
Electrical specifications include a maximum contact resistance of 20.00 mΩ, minimum insulation resistance of 10,000 MΩ, rated voltage of 100 VRMS / 150 VDC, and a dielectric withstanding voltage of 1,000 VRMS minimum. The connector is rated for an operating temperature range of -55°C to +125°C. Mechanical durability is rated at 100,000 to 1,000,000 cycles at mid-stroke. It also meets shock and vibration requirements with no electrical discontinuity greater than 1 μs.
The connector is packaged in a box or tube and is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). It is manufactured in the USA by Mill-Max Manufacturing Corp.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.95 | $5.95 |
| 10+ | $5.06 | $5.06 |
| 25+ | $4.74 | $4.74 |
| 51+ | $4.51 | $4.51 |
| 102+ | $4.29 | $4.29 |
| 255+ | $4.02 | $4.02 |
| 510+ | $3.83 | $3.83 |
| 1,020+ | $3.65 | $3.65 |
| 2,550+ | $3.42 | $3.42 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
Surface mount, right angle.
100 VRMS and 150 VDC.
-55°C to +125°C.
20.00 mΩ maximum.
100,000 to 1,000,000 cycles at mid-stroke.
Yes, it is RoHS3 compliant.
