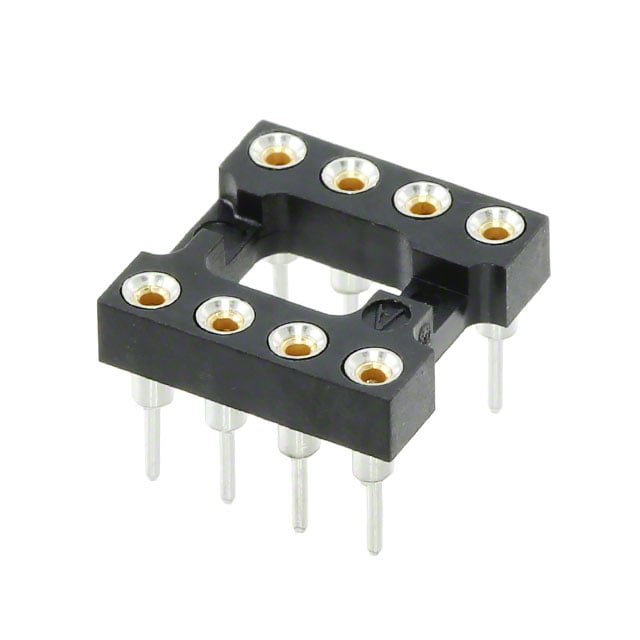

The TE Connectivity 808-AG11D-ESL is an 8-position IC DIP socket designed for reliable interconnect solutions. It features a 0.100" pitch for both mating and post connections, with gold-plated beryllium copper contacts for mating and copper base contacts for the post. The socket has a contact resistance of 10mOhm and a termination post length of 0.125".
Constructed with a Polycyclohexylenedimethylene Terephthalate (PCT) and Polyester housing, this socket has a flammability rating of UL94 V-0. It operates within a temperature range of -55°C to 105°C and has a row spacing of 0.3" (7.62mm).
This DIP socket is designed for through-hole mounting and comes in a standard package of 60 units. It is RoHS compliant and has a Moisture Sensitivity Level (MSL) of 1.
Applications for this connector include environments where reliable and high-performance interconnect solutions are required, such as in automotive, industrial, and telecommunications sectors.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TE Connectivity 808-AG11D-ESL connector has 8 positions.
The pitch for both mating and post connections on the TE Connectivity 808-AG11D-ESL connector is 0.100 inches (2.54mm).
The operating temperature range for the 808-AG11D-ESL connector is -55°C to 105°C.
The contact resistance of the 808-AG11D-ESL connector is 10mOhm.
The 808-AG11D-ESL connector features a through-hole mounting type.
The 808-AG11D-ESL connector has a flammability rating of UL94 V-0.
The Moisture Sensitivity Level (MSL) for the 808-AG11D-ESL connector is 1 (Unlimited).
