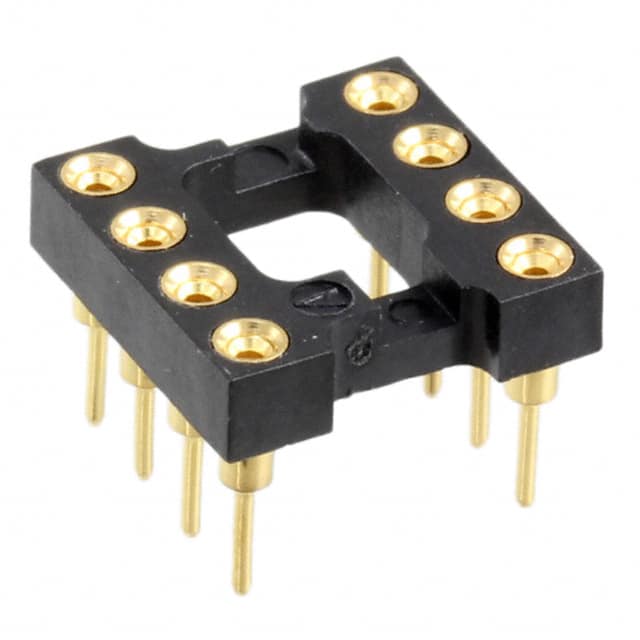

808-AG10D TE Connectivity 808-AG10D is an 8-position (2x4) DIP IC socket with gold-plated contacts, 2.54mm pitch, and through hole solder termination.
Mfr Part #:

808-AG10D

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 808-AG10D is an 8-position (2x4) DIP IC socket with gold-plated contacts, 2.54mm pitch, and through hole solder termination.
✓ Total Stock: 30 pcs
$ Price Range: $3.29 - $3.49

808-AG10D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
30 pcs
On Request
30 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

808-AG10D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Finish
Contact Finish Thickness
Contact Material
Features
Housing Material
Lead Spacing
Lead Style
Mounting Type
Number of Positions or Pins (Grid)
Operating Temperature
Pitch
Termination
Termination Style
Type
View Similar Products (0)

808-AG10D Description

Short technical summary and product information.

The TE Connectivity 808-AG10D is an 8-position DIP IC socket designed for through hole mounting. It features a 2.54mm (0.100") pitch and gold-plated copper alloy contacts with a thickness of 25.0µin (0.63µm). The open frame polyester housing allows for easy inspection and cleaning. This socket is suitable for a wide range of IC packaging and operates over a temperature range of -55°C to 105°C. It is RoHS3 compliant and has an MSL of 1 (unlimited).

808-AG10D Quick Information

Product Type: IC Socket
Canonical Name: TE Connectivity 808-AG10D 8-Position DIP IC Socket
Subcategory: DIP Sockets

808-AG10D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

808-AG10D Estimated Pricing

Qty Low High
25+ $3.49 $3.49
150+ $3.42 $3.42
250+ $3.35 $3.35
450+ $3.29 $3.29

Estimated market price range - modelled values for guidance only, not live distributor offers.

808-AG10D Features

  • 8-position DIP socket with 2.54mm pitch.
  • Gold-plated copper alloy contacts.
  • Through hole solder termination.
  • Open frame polyester housing.
  • Operating temperature range -55°C to 105°C.

808-AG10D Applications

  • Used for prototyping and production IC sockets.
  • Ideal for 8-pin DIP package ICs.
  • Suitable for industrial and consumer electronics.

808-AG10D FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the 808-AG10D have?

8 positions (2 x 4).

What is the pitch of this socket?

2.54mm (0.100").

What is the mounting type?

Through hole.

What is the contact finish?

Gold, 25.0µin (0.63µm) thickness.

What is the operating temperature range?

-55°C to 105°C.

Is this socket RoHS compliant?

Yes, RoHS3 compliant (unverified).
