| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coating, Housing Type | |
| Composition | |
| Dimensions | |
| Features | |
| Height | |
| Lead Style | |
| Length | |
| Mounting Feature | |
| Mounting Type | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

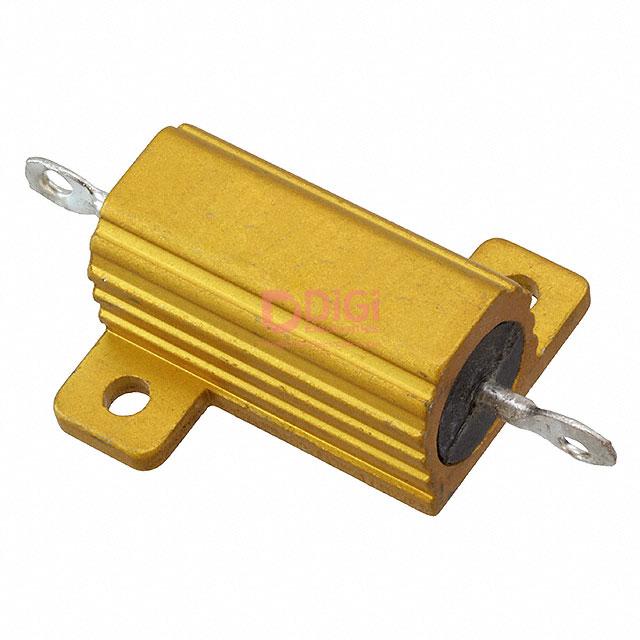

This Ohmite 805F1K5 is a wirewound chassis mount resistor designed for robust thermal management and electrical stability. It offers a resistance value of 1.5 kOhms with a tight tolerance of ±1%, ensuring precise circuit operation.
With a power rating of 25W, this resistor is suitable for applications requiring significant power dissipation. The wirewound construction provides excellent stability and reliability. It operates across a wide temperature range of -55°C to 275°C, making it versatile for various environmental conditions.
The resistor features an aluminum housing and mounting flanges for secure chassis attachment, facilitating efficient heat transfer away from the component. Its solder lug lead style ensures a reliable connection. The package is an axial, box type, designed for easy integration into electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 1.5 kOhms.
The tolerance is ±1%.
The power rating is 25W.
The operating temperature range is -55°C to 275°C.
It uses chassis mounting with flanges.
The dimensions are 26.97mm x 27.43mm.
The package type is Axial, Box.
