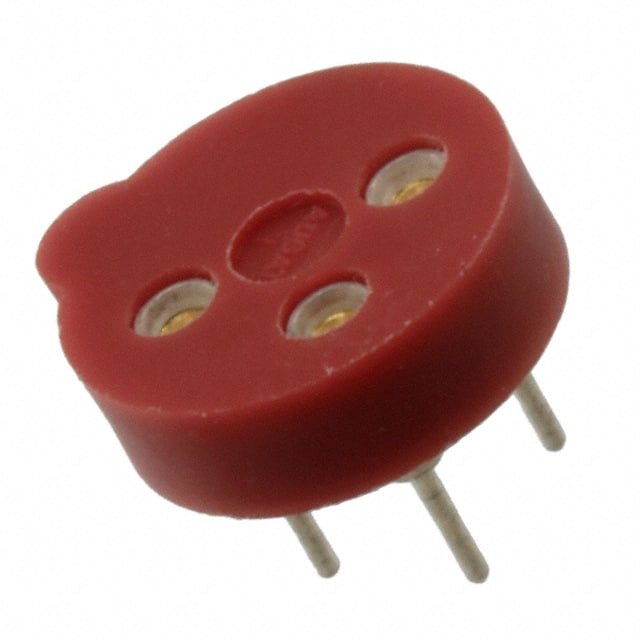

8059-2G2 TE Connectivity 8059-2G2 is a through hole TO-5 transistor socket with 3 positions and gold plated copper alloy contacts. It features a nylon housing and operates from -55°C to 125°C.
Mfr Part #:

8059-2G2

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 8059-2G2 is a through hole TO-5 transistor socket with 3 positions and gold plated copper alloy contacts. It features a nylon housing and operates from -55°C to 125°C.
✓ Total Stock: 15 pcs

8059-2G2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
15 pcs
On Request
15 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

8059-2G2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Finish
Contact Material
Housing Material
Mounting Type
Number of Positions
Number of Positions or Pins (Grid)
Operating Temperature
Termination
Termination Style
Type
View Similar Products (0)

8059-2G2 Description

Short technical summary and product information.

The TE Connectivity 8059-2G2 is a round TO-5 transistor socket designed for through hole mounting. It accommodates 3-position round pin layouts typical of small signal transistors and other TO-5 packaged devices.



Key specifications include gold plated copper alloy contacts for reliable electrical performance and corrosion resistance. The housing is made from polyamide (PA) nylon, providing good mechanical strength and insulation. The socket supports a wide operating temperature range of -55°C to 125°C, making it suitable for demanding industrial and automotive environments.



Termination is via solder connections, suitable for wave soldering or hand soldering into printed circuit boards. This socket provides a convenient method for mounting and replacing TO-5 devices without soldering the transistor directly, reducing thermal stress and simplifying field service.

8059-2G2 Quick Information

Product Type: Transistor Socket
Canonical Name: 8059-2G2 TE Connectivity Transistor Socket TO-5 3 Position Through Hole Gold
Subcategory: TO-5 Socket

8059-2G2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

8059-2G2 Features

  • Through hole mounting for TO-5 transistors.
  • Gold plated copper alloy contacts.
  • Nylon housing for mechanical strength.
  • Wide operating temperature range -55°C to 125°C.
  • 3-position round pin configuration.

8059-2G2 Applications

  • Used in socketing TO-5 transistors.
  • Suitable for industrial control circuits.
  • Ideal for prototyping and testing.
  • Supports replacement in through hole PCBs.

8059-2G2 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the 8059-2G2 socket have?

This TO-5 socket has 3 positions in a round configuration.

What is the mounting type for this socket?

The mounting type is through hole.

What is the operating temperature range?

The operating temperature range is -55°C to 125°C.

What is the contact finish on this socket?

The contact finish is gold.

What material is the contact made of?

The contact material is copper alloy.

What is the housing material of the 8059-2G2?

The housing material is polyamide (PA), nylon.
