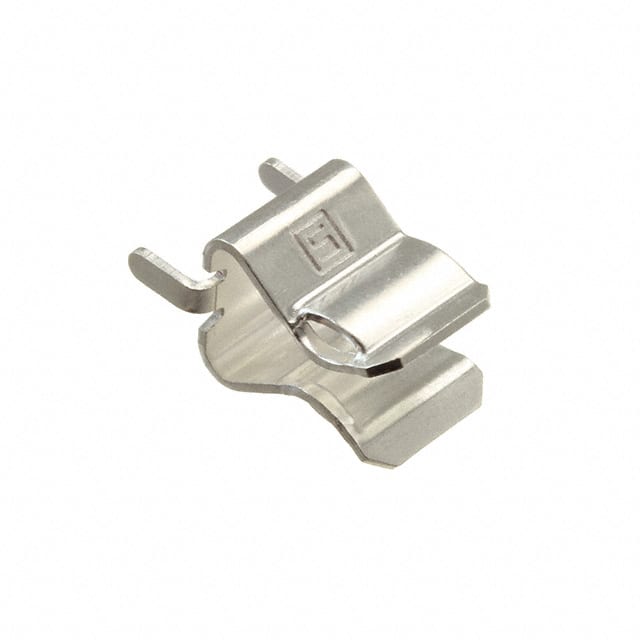

8040.0003 Fuse clip cartridge for 1/4" diameter fuses. Rated for 32A and 600V, with through hole mounting and PC pin termination.
Mfr Part #:

8040.0003

Available from 1 distributors
Mfr Name: Schurter Inc.
Schurter Inc.
Fuse clip cartridge for 1/4" diameter fuses. Rated for 32A and 600V, with through hole mounting and PC pin termination.
✓ Total Stock: 29 pcs
$ Price Range: $0.56 - $1.20

8040.0003 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Akira Global ✓
Non-Authorised Inventory information
29 pcs
On Request
29 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

8040.0003 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Conflict Minerals
Contact Finish
Contact Material
Current Rating (Amps)
For Use With
Fuse Size
Fuse Type
Fuseholder Type
Lead Style
Mounting Type
Number of Circuits
Orientation
SVHC Present
Termination Style
Voltage
View Similar Products (0)

8040.0003 Description

Short technical summary and product information.

This is a fuse clip from Schurter Inc., designed for 1/4" diameter cartridge fuses. It is a single-circuit, horizontal orientation clip suitable for through hole PCB mounting.



Electrical: rated for 32A continuous current and 600V maximum voltage. The contact is made of beryllium copper with silver finish, ensuring good conductivity and corrosion resistance.



Mechanical: features PC pin termination for secure soldering. The clip is designed for easy fuse insertion and replacement.

8040.0003 Quick Information

Product Type: Fuse Clip
Canonical Name: Schurter 8040.0003 Fuse Clip Cartridge, 600V, 32A, Through Hole, PC Pin
Subcategory: Fuse Clips

8040.0003 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

8040.0003 Estimated Pricing

Qty Low High
1+ $1.20 $1.20
10+ $1.10 $1.10
50+ $0.91 $0.91
100+ $0.84 $0.84
250+ $0.76 $0.76
500+ $0.70 $0.70
1,000+ $0.64 $0.64
2,000+ $0.61 $0.61
5,000+ $0.56 $0.56

Estimated market price range - modelled values for guidance only, not live distributor offers.

8040.0003 Features

  • Fuse clip for 1/4" diameter cartridge fuses.
  • Rated for 32A current and 600V voltage.
  • Through hole mounting with PC pin termination.
  • Beryllium copper contact with silver finish.
  • Single circuit, horizontal orientation.

8040.0003 Applications

  • Used in power supply circuit protection.
  • Ideal for industrial control panels.
  • Suitable for high-current PCB applications.
  • Common in automotive and marine fuse holders.

8040.0003 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating of the Schurter 8040.0003 fuse clip?

The fuse clip is rated for 32 A continuous current.

What is the voltage rating of the Schurter 8040.0003?

The voltage rating is 600 V.

What type of fuse does the 8040.0003 accommodate?

It accommodates 1/4" diameter cartridge fuses.

What is the mounting type of this fuse clip?

It is a through hole mounting component.

What is the termination style of the Schurter 8040.0003?

Termination is via PC pins.

What is the contact material and finish?

The contact is made of beryllium copper with a silver finish.
