| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
160 pcs
|
160 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Color | |
| Current | |
| Current Rating | |
| Features | |
| Lead Spacing | |
| Length | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Termination |

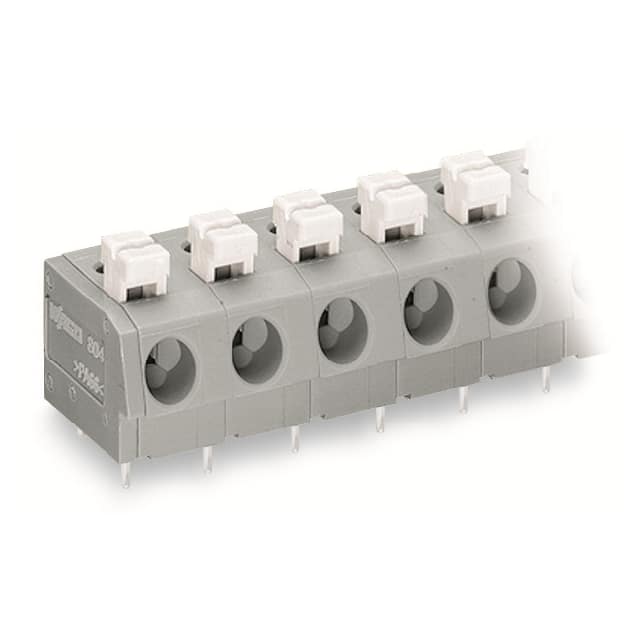

The Wago 804-304 is a 4-pole PCB terminal block designed for wire-to-board connections. It features a Push-in CAGE CLAMP termination for screwless, push-button actuated wire installation, accommodating 12-20 AWG wire (2.5 mm² conductor cross section).
Rated at 10 A and 300 V, this terminal block offers a 7.5 mm pin spacing and a horizontal mating orientation with the board. The through-hole mounting ensures secure attachment to the PCB.
Constructed in a gray housing, the 804-304 is suitable for industrial control, building automation, and general-purpose wiring applications where reliable, tool-less wire termination is desired.
| Qty | Low | High |
|---|---|---|
| 40+ | $2.87 | $2.87 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 7.5 mm (0.295 inches).
The current rating is 10 A.
The voltage rating is 300 V.
It accepts 12-20 AWG wire (2.5 mm² conductor cross section).
It uses Push-in CAGE CLAMP screwless termination with a push-button actuator.
It has 4 positions (4 poles) in a single level.
It is a through-hole mount component.
