| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Clip Material | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Resistance | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Strength | |
| Fastening Type | |
| Insertion Force | |
| Insulation Color | |
| Insulation Height | |
| Insulator Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mating Pin Diameter | |
| Mechanical Life | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Sleeve Material | |
| Style | |
| Termination | |
| Termination Style | |
| Withdrawal Force |

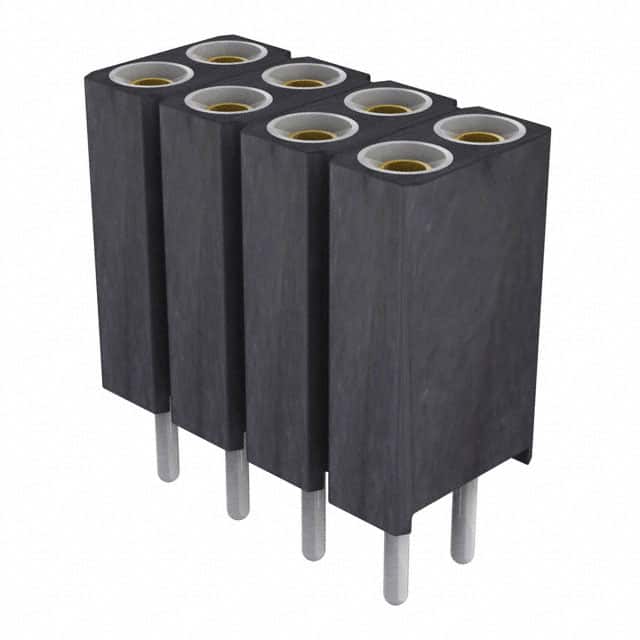

The Preci-Dip 803-87-008-10-003101 is a straight double row socket connector designed for board-to-board applications. It features 8 positions loaded in 2 rows with a 2.54 mm pitch and row spacing. The connector uses a push-pull fastening type and is terminated with solder tails for through hole mounting.
Electrical specifications include a current rating of 3 A, maximum contact resistance of 10 mΩ, and minimum dielectric strength of 1000 VRMS. The operating temperature range is -55°C to 125°C. Mechanical characteristics include a minimum mechanical life of 500 cycles, typical insertion force of 1.2 N, and typical withdrawal force of 0.6 N.
The insulator is made of black glass filled polyester PCT-GF30-FR with a UL94 V-0 flammability rating. The sleeve is brass CuZn36Pb3 (C36000) and the contact clip is beryllium copper (C17200). The contact finish is tin flash. The connector is RoHS compliant.
| Qty | Low | High |
|---|---|---|
| 850+ | $1.07 | $1.07 |
| 2,550+ | $1.04 | $1.04 |
| 5,100+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 8 positions, all loaded, in 2 rows.
The pitch is 2.54 mm (0.100 inches).
The current rating is 3 A.
It is through hole mounting with solder tail termination.
The operating temperature range is -55°C to 125°C.
Yes, it is RoHS compliant.
