| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,384 pcs
|
1384 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,384 pcs
|
1384 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Storage Temperature | |
| Style | |
| Termination |

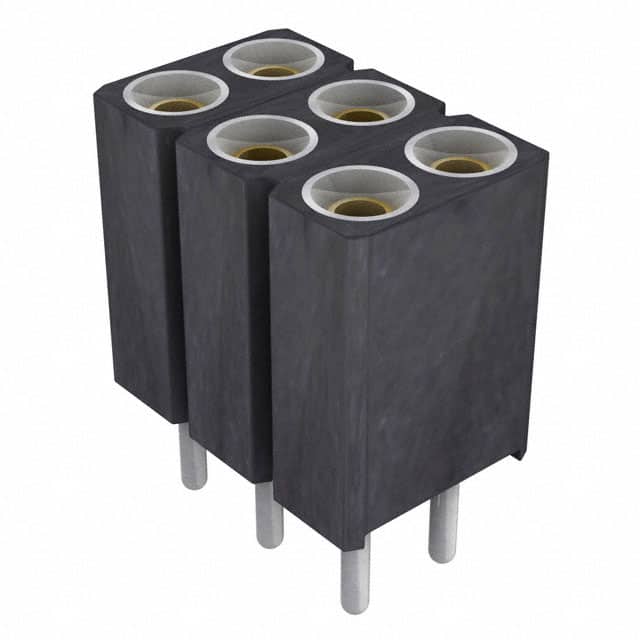

The Preci-Dip 803-87-006-10-001101 is a 6 position, 2 row socket designed for board-to-board applications. It features a 2.54mm (0.100") pitch and row spacing, with a push-pull fastening mechanism. The socket uses through hole solder termination and has a black insulation with a height of 7.00mm (0.276").
Electrical rating is 3A with an operating temperature range of -55°C to 125°C. The contacts are female socket type with a tin finish (flash thickness) and a contact length of 3.00mm (0.118"). The insulation material has a UL94 V-0 flammability rating.
This socket is suitable for board-to-board interconnects where a reliable push-pull connection is required. All 6 positions are loaded in a 2 row configuration.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
| 10+ | $0.84 | $0.84 |
| 25+ | $0.81 | $0.81 |
| 100+ | $0.76 | $0.76 |
| 250+ | $0.69 | $0.69 |
| 500+ | $0.62 | $0.62 |
| 1,000+ | $0.57 | $0.57 |
| 2,400+ | $0.53 | $0.53 |
| 4,800+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions, all loaded, in 2 rows.
2.54mm (0.100").
3A.
-55°C to 125°C.
Through hole with solder termination.
