| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,095 pcs
|
1095 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,095 pcs
|
1095 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination |

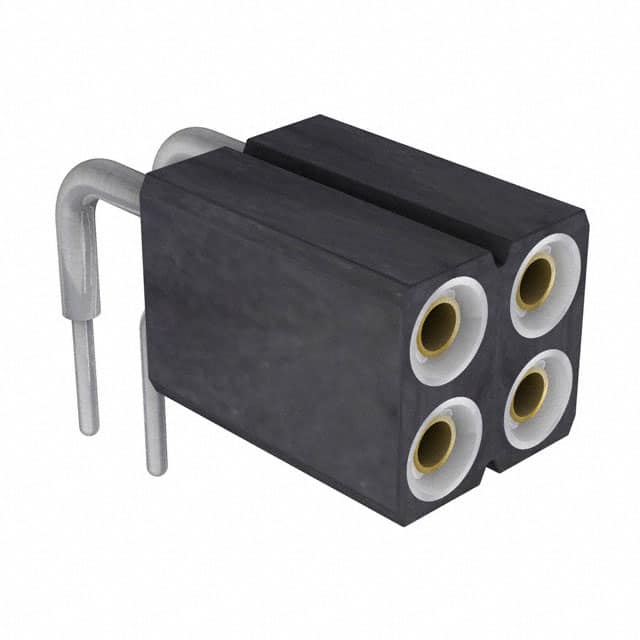

The Preci-Dip 803-83-004-20-001101 is a 4 position, 2 row, right angle socket connector designed for board-to-board applications. It features a 2.54mm pitch and row spacing, with all positions loaded. The connector uses a push-pull fastening type and through-hole, right angle mounting with solder termination. The insulation is black with a height of 5.08mm, and the material has a UL94 V-0 flammability rating. Contacts are female sockets with a tin finish of 0.75µm thickness and a contact length of 3.20mm. The connector is rated for a current of 3A and operates over a temperature range of -55°C to 125°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.62 | $1.62 |
| 10+ | $1.38 | $1.38 |
| 100+ | $1.18 | $1.18 |
| 500+ | $1.05 | $1.05 |
| 1,000+ | $0.97 | $0.97 |
| 2,800+ | $0.94 | $0.94 |
| 5,600+ | $0.88 | $0.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 4 positions, all loaded, in 2 rows.
The pitch is 2.54mm (0.100") and the row spacing is also 2.54mm.
The current rating is 3A.
Through hole, right angle with solder termination.
-55°C to 125°C.
