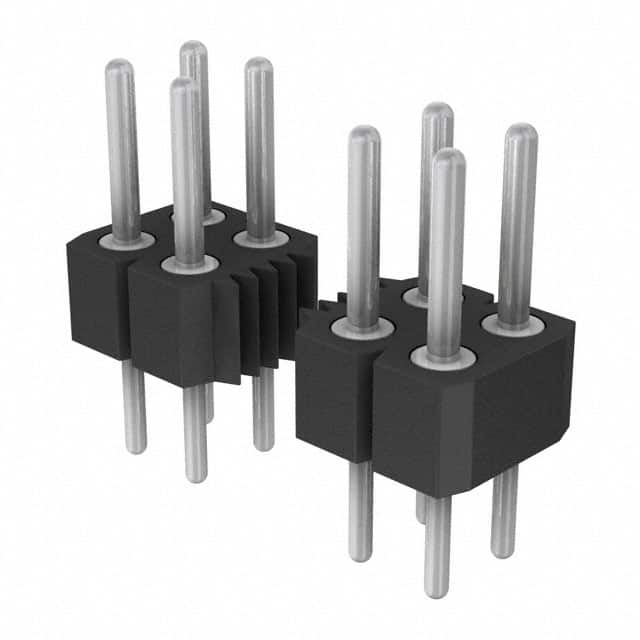

The Preci-Dip 802-80-040-10-001101 is a 40-position unshrouded header designed for board-to-board connections. It features two rows of male pins at a 2.54mm pitch, with a row spacing of 2.54mm. The header is through-hole mounted and terminated with solder, ensuring a reliable mechanical and electrical connection to the PCB.
Electrical ratings include a current rating of 3A and a voltage rating of 150VDC. The contacts are made of brass with a tin finish, providing good conductivity and corrosion resistance. The insulation is molded from polycyclohexylenedimethylene terephthalate (PCT), polyester, glass filled material, which is rated UL94 V-0 for flammability.
The header operates over a temperature range of -55°C to 125°C, making it suitable for a variety of environments. The overall contact length is 11.12mm, with a contact length of 4.85mm. The insulation height is 2.79mm. This connector is a standard choice for prototyping and production applications requiring a compact, reliable interconnect.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.43 | $6.43 |
| 10+ | $5.82 | $5.82 |
| 25+ | $5.50 | $5.50 |
| 50+ | $5.37 | $5.37 |
| 100+ | $5.10 | $5.10 |
| 216+ | $4.56 | $4.56 |
| 432+ | $4.29 | $4.29 |
| 1,080+ | $3.75 | $3.75 |
| 2,592+ | $3.57 | $3.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40 positions in 2 rows.
2.54mm (0.100").
3A per contact.
150VDC.
Through hole, with solder termination.
-55°C to 125°C.
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled, UL94 V-0 rated.
