| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
84 pcs
|
84 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Storage Temperature | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

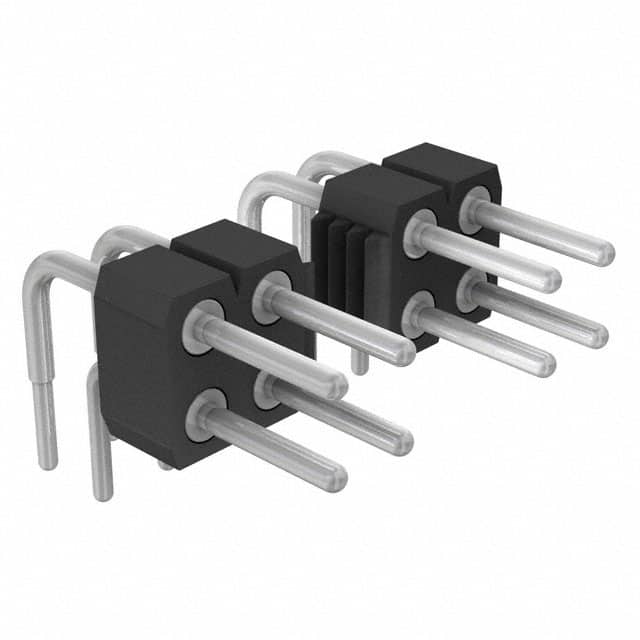

The Preci-Dip 802-80-020-20-001101 is a 20 position, 2 row unshrouded header designed for board-to-board applications. It features a 2.54mm pitch and 2.54mm row spacing, with a right angle through hole mounting style and solder termination.
The header uses male pin contacts made of brass with a tin finish, housed in a black glass-filled PCT/polyester insulator rated UL94 V-0. The contact length is 4.95mm and the insulation height is 5.08mm. It is rated for 3A current and 150VDC, with an operating temperature range of -55°C to 125°C.
| Qty | Low | High |
|---|---|---|
| 384+ | $2.41 | $2.41 |
| 1,152+ | $2.10 | $2.10 |
| 2,688+ | $1.96 | $1.96 |
| 5,376+ | $1.87 | $1.87 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 20 positions, all loaded, arranged in 2 rows.
The pitch is 2.54mm (0.100") with a row spacing of 2.54mm.
The current rating is 3A.
The voltage rating is 150VDC.
It uses through hole, right angle mounting with solder termination.
